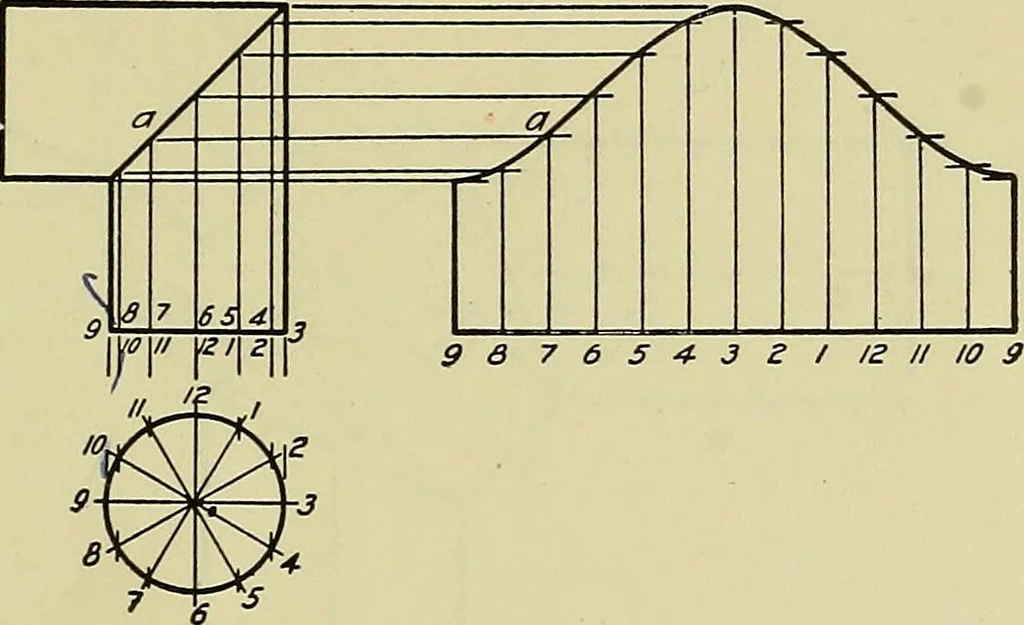

Fig. 213. Development of Cylindrical Surface Cut at an Angle lines from the base up to the inclined line is the length of a cor-responding line to be located in the pattern, because it is shownin its true length. Vertical lines are drawn in the pattern from the pointsstepped off in the base. These…
