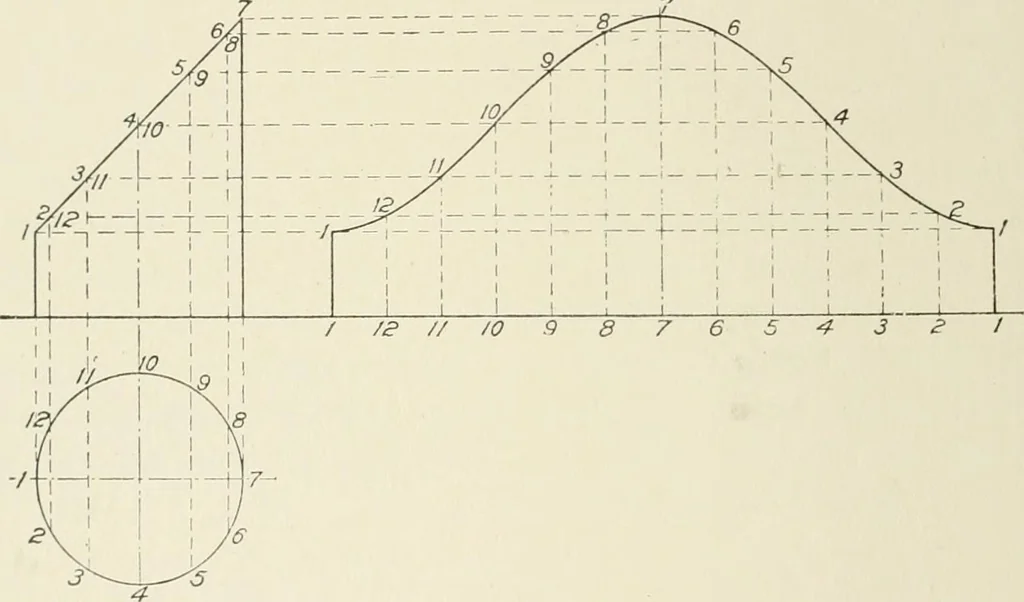

id is regular, two other equal triangles,D and E, may be drawn to represent the other sides. These, togetherwith the base F, constitute the complete development. Truncated Circular Cylinder. If a truncated circular cylinderis to be devetoped, or rolled upon a plane, the elements, being… … Fig. 136. Projections and Development of Truncated Cylinder divided into twelve equal parts, 1, 2, 3, etc., and commencing atpoint 1 on the development, these twelve equal spaces are laid offalong the straight line, giving the total width. Draw in elevation the elements corresponding to the…
