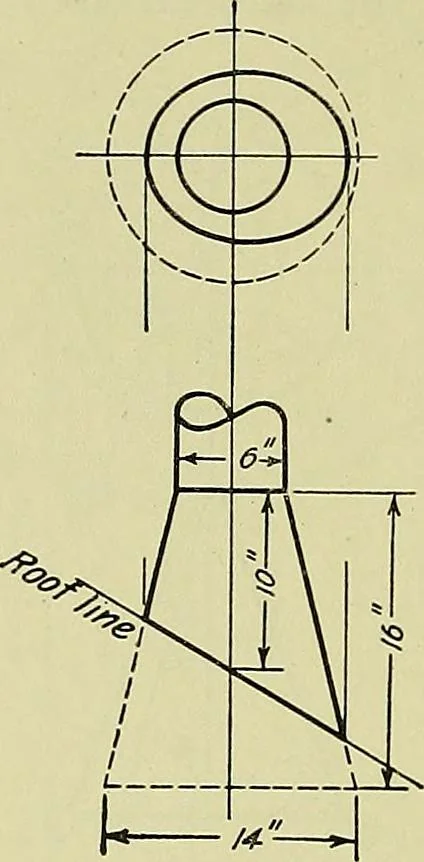

intclearly in mind it will be evident that to find the length of o a itis only necessary to draw the horizontal line ah as construction. DATA FOR DRAWING PLATE 29 Given: The orthographic views of the objects shown inFigs. 228 and 229. 210 MECHANICAL DEAWING Required: To draw a pattern for one of…
