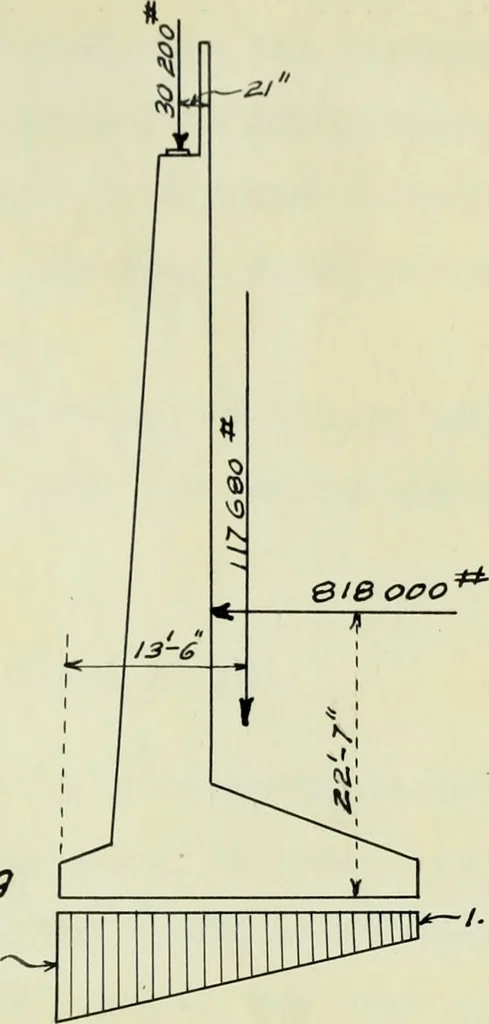

27(e) F/g £7. Section of fibcrfme/rt show/rigForces- Q.oTb/i … I.GTon. The stresses on the foundation, produc by the forces,shown in Fig. 27, acting separately are: The weight of the wall, fill on the footing, and the girderreaction; 148 880 / 22,5 = 9 750 pounds. Fig. 27(a). The eccentricity of the resultant of the weight of thewall and fill on the footing;…
