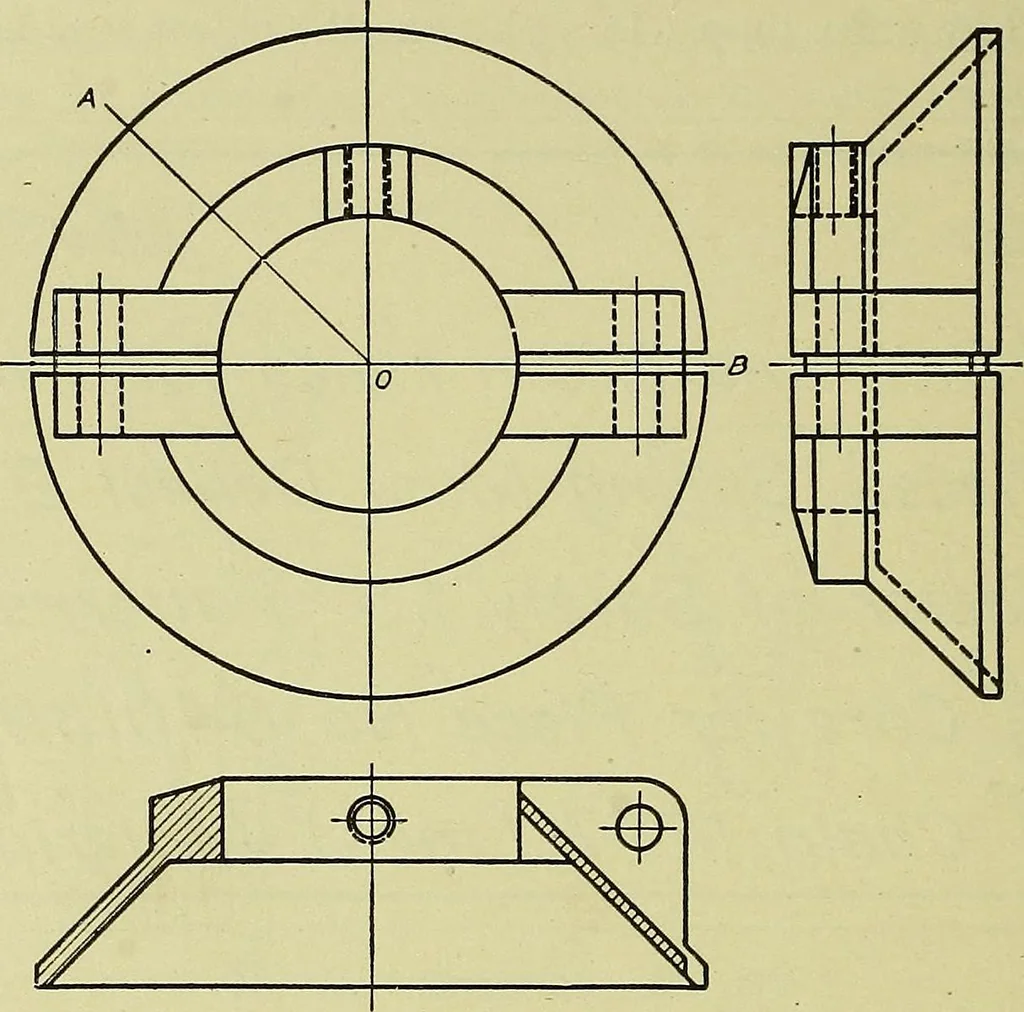

drawing the section view, the cut surface 0 A is con-sidered revolved into the same plane with 0 B. Fig. 254 illus-trates what is called a partial section. The ragged line indicatesthat a part of the shaft has been broken away. The cross-section of an object is often given by showing a 228… … Section on AOB Fig. 253. Broken Line Section
