Machine design; a manual of practical instruction in designing machinery for specific purposes, including specifications for belts, screws, pins, gears, etc., and many working hints as to operation and care of machines (1918)
Wallace, Ernest L · Chicago, American technical society · leaf 89

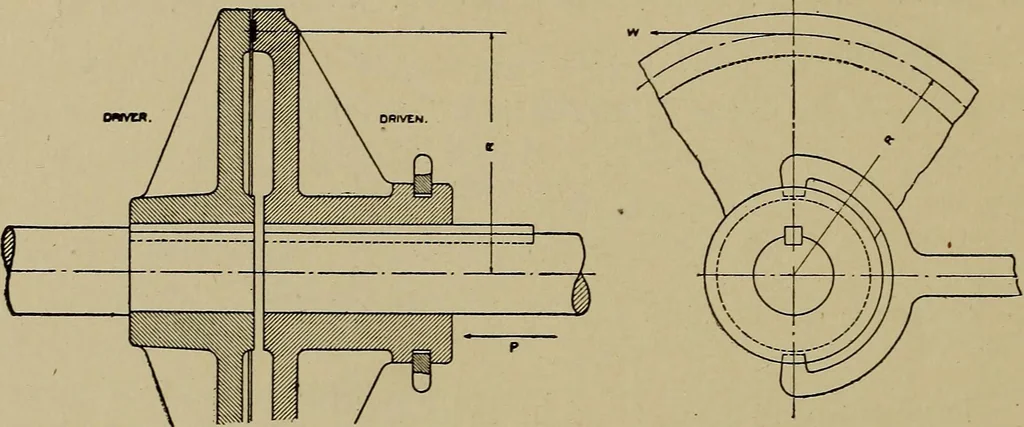

T = Twisting moment about shaft minute) axis (inch-lbs.) u = Coefficient of friction (per cent) V = Force normal to clutch face (lbs.) N = Number of revolutions per min- W = Load at mean radius of friction ute surface (lbs.) P = Force to hold clutch in gear to produce W (lbs.) 78 MACHINE DESIGN… … Fig. 47. Friction Clutch with Flat Face The connection is usually accomplished while the driving shaft isunder full speed, the slipping between the surfaces which occursduring the throwing-in of the clutch, permitting the driven shaftto pick up gradually the speed of the other. The disconnection…
Machine design
