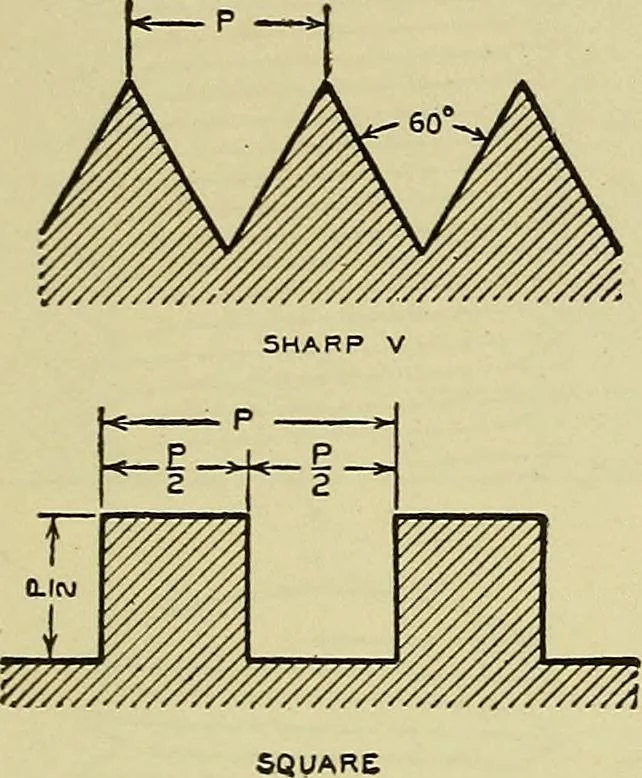

Fig. 280. Construction of the Helix The bill of material includes standard parts such as bolts andscrews which are not detailed on the drawings. A simple bill ofmaterial is shown in Fig. 279. ADVANCED DRAWING 249 Screw Threads. The curve of the screw thread is the helix.It is generated by a point… … ^P^ ^lh
