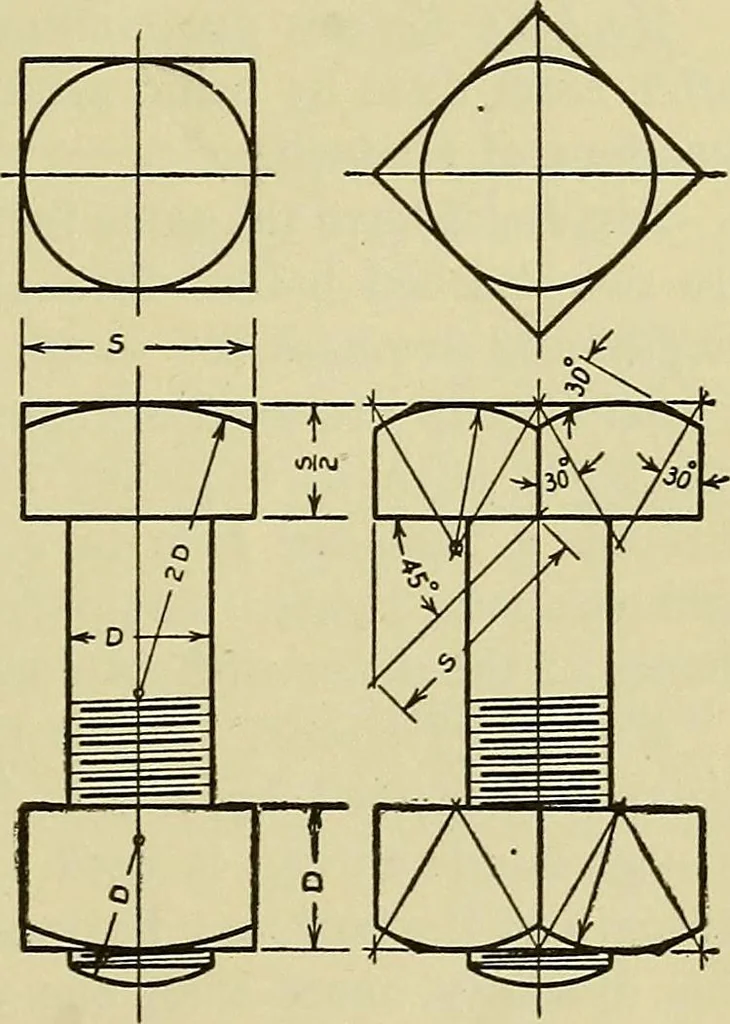

Fig. 294. Actual Proportions. Fig. 295. Conventional Eepre- Square Head—U. S. Standard sentation. Square Head—TJ. S. Bolts and Nuts Standard Bolts and Nuts (257) 258 MECHANICAL DRAWING Figs. 293 and 295 show the conventional methods of repre-senting hexagonal and square bolt heads and nuts.…
