Notes on practical mechanical drawing, written for the use of the students in general engineering drawing in the University of Illinois (1907)
Wilson, Victor Tyson, 1864- [from old catalog] · State College, Pa., The author · leaf 132

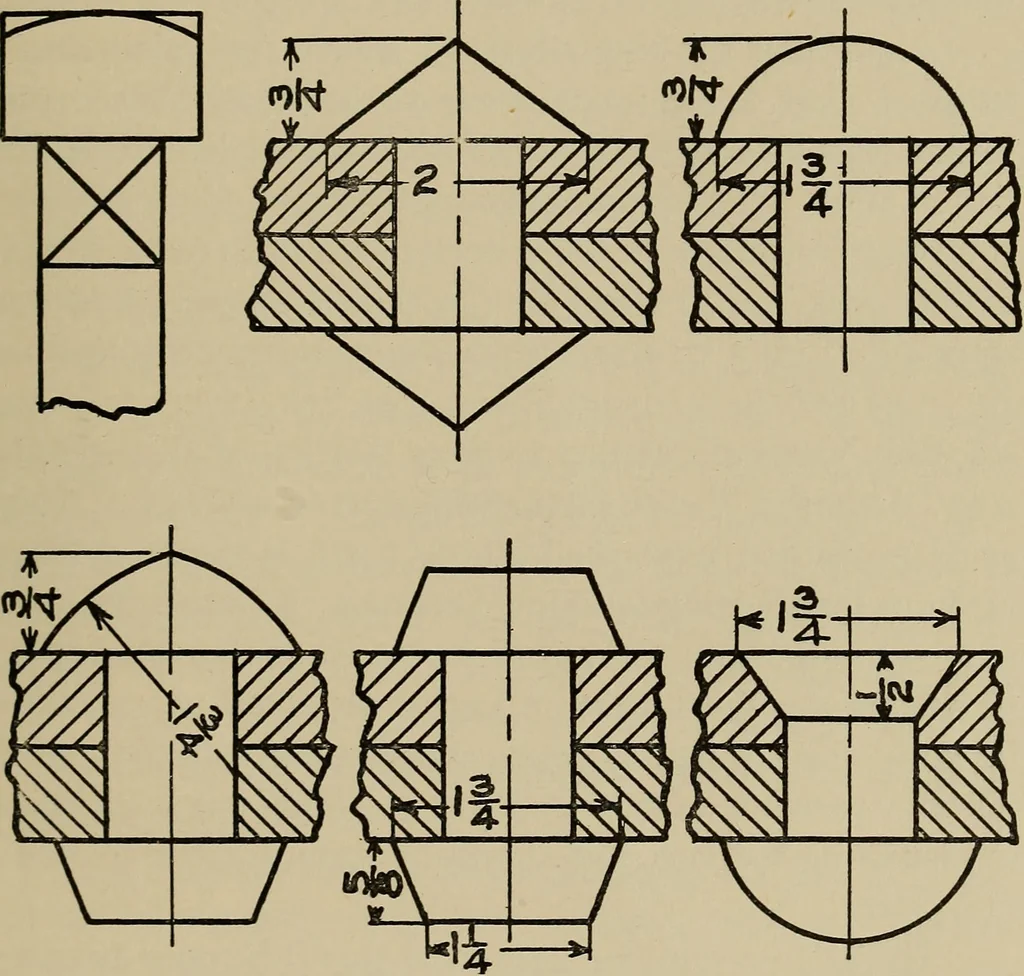

ening two or more thinmembers together are really short bolts with permanentheads on both ends. The heads of rivets are conical,spherical, cup shaped or pan headed, as shown in Fig. 35.The conical shape is the most common obtained by the useof the ordinary hand-hammer. If the cup head or pan head… … at the left. The approximate proportions are shown bydimensions on the figures given in terms of d. The exact interpretation of the dimensions shown isnot important in ordinary drawing. The diameter of a boltor rivet being laid out, the adjuncts can generally be treatedwith sufficient precision by…
Mechanical drawing
