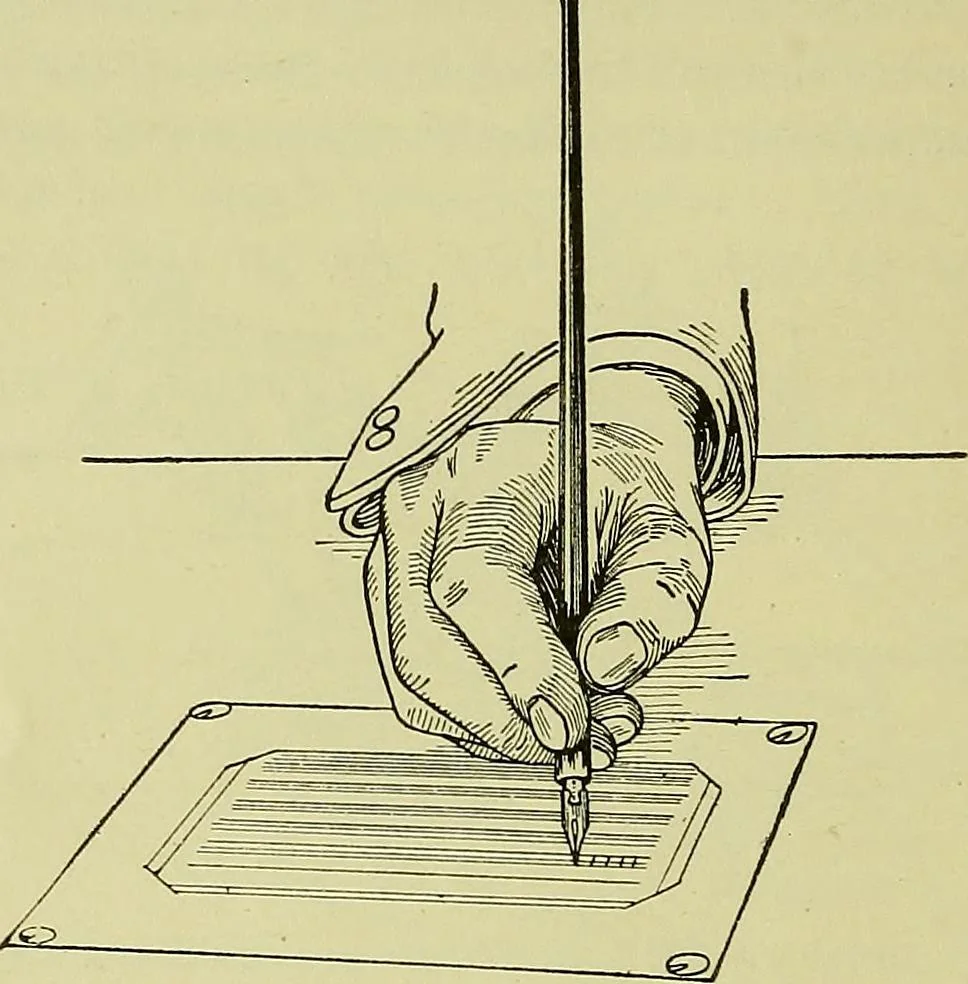

spacesmust not be so great that the letters appear scattered. In like 24 MECHANICAL DRAWING manner words must be separated enough to stand out individ-ually, but not enough to make reading difficult. Lettering in Pencil. The pencil used for the freehand workon a drawing should be softer than the… … Fig. 14. Correct Position of the Hand and Pen for Lettering the paper, as difficulty is then experienced in controlling thedirection of the line. The lead should be sharpened to a long taper, conical inform and rather blunt at the end. With one-quarter inch oflead exposed, and this tapered back to…
