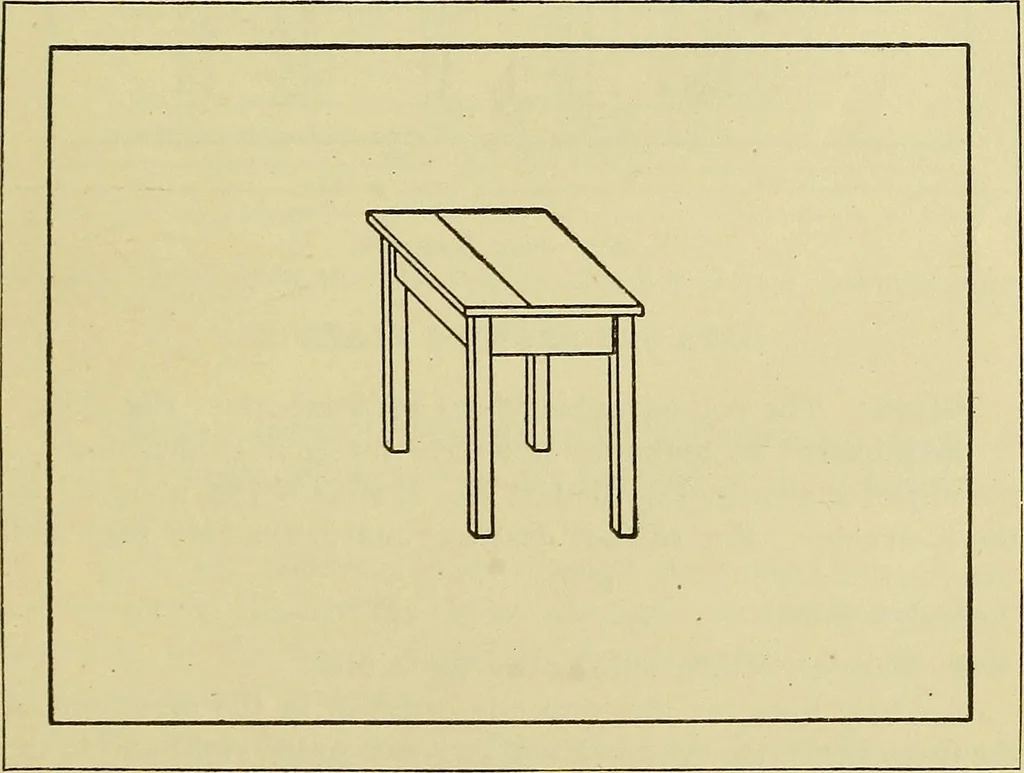

K^^ Fig. 347. Type Problem. Study Table. Orthographic Views (308) Fig. 348. Type Problem. Isometric Drawing of Study Table … Fig. 349. Type Problem. Cabinet Drawing op Study Table (309) 310 MECHANICAL DEAWING are located in a similar manner. The ares are tangent at thepoint F. The four-center method is an approximation and isusually suitable only for full circles. When an arc is drawnwhich must pass through certain…
