Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 331

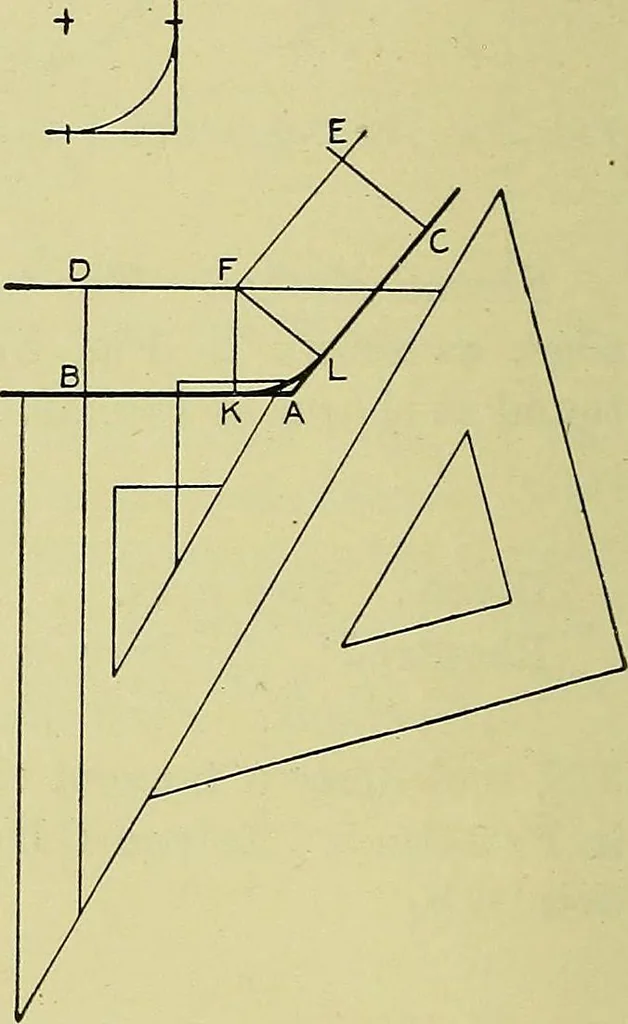

Fig. 375. To Dra-\v an Aec Tan-gent TO Two Intersecting Liives Fig. 376. To Draw an Arc Tan-gent TO Two Intersecting LinesWITH THE Triangle Second Method. Fig. 376. Draw a line at right angles toeach of the intersecting lines with the triangles, as described onpage 125. Lay off B D and E C equal to…
Mechanical drawing
