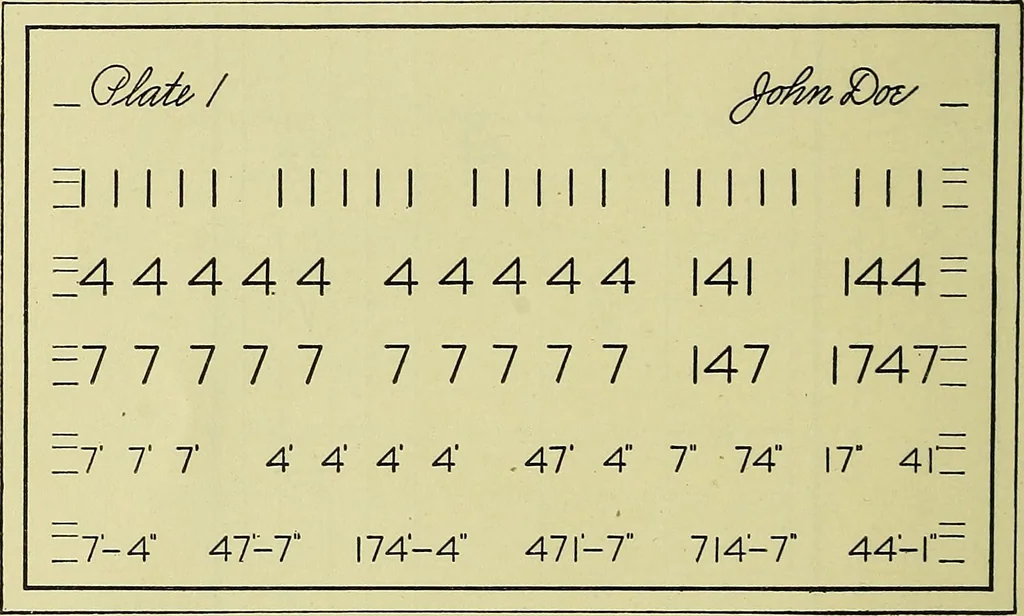

e starting a stroke, carefullyplan its position and direction. Make each line with one move-ment of the pencil. A vertical stroke is made by drawing aline from one point to another directly below it. In case a strokeor letter is unsatisfactory it should be erased and redrawn. Foot and Inch Marks. A… … Fig. 20. LETTEPaxG Plate 1. 1, 4, 7DATA FOR LETTERING PLATE 1 Given: Plate 1 to reduced size, Fig. 20.Required: To make the plate to an enlarged scale. Instructions: 1. Fasten the card to the board either with thumb tacks orby inserting its comers in diagonal slits cut in a larger pieceof paper…
