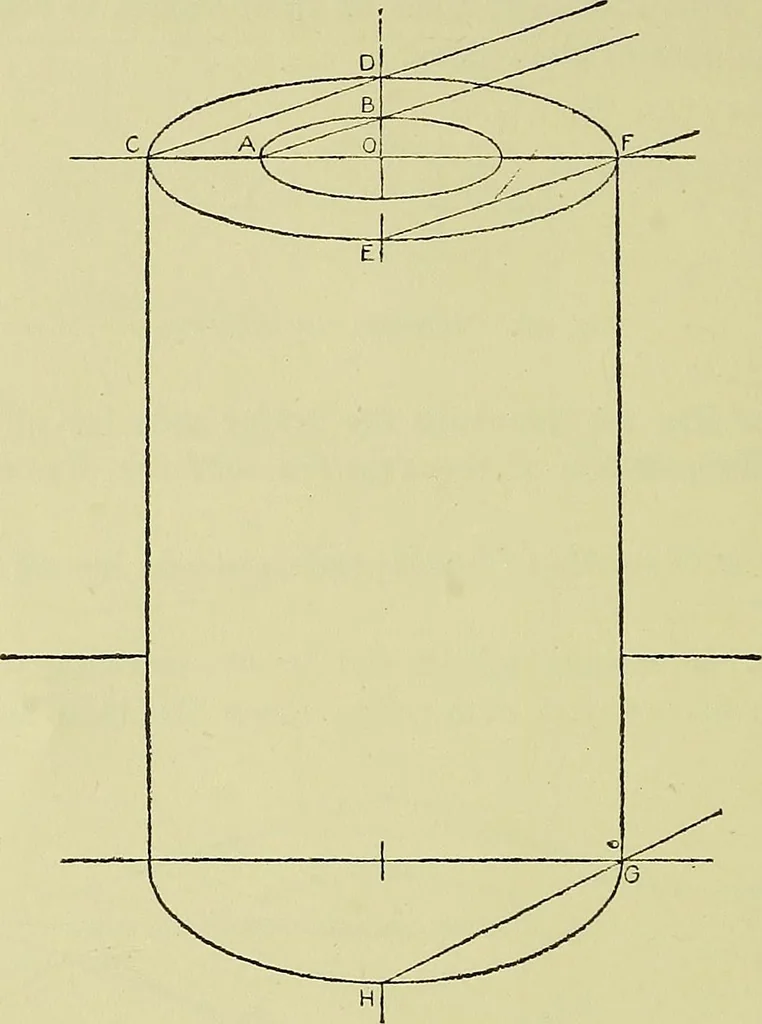

ing ellipse in the scale of levels. Care should betaken to avoid sharp or blunt ends. 5. Ordinary defects in the form of the ellipse should be de-tected by examining it as follows: a. Turn the sheet to the right, to the left, and upsidedown, and view the form carefully when the sheet is ineach of… … FiQ. 42. Split Core Bos—Axis Vertical tances and make the necessary corrections. Likewise lo-cate C and D equidistant from 0 and compare the verticaldistances from these points to the ellipse. Make the nec-essary corrections as before. Concentric Circles in Perspective The problem of drawing two…
