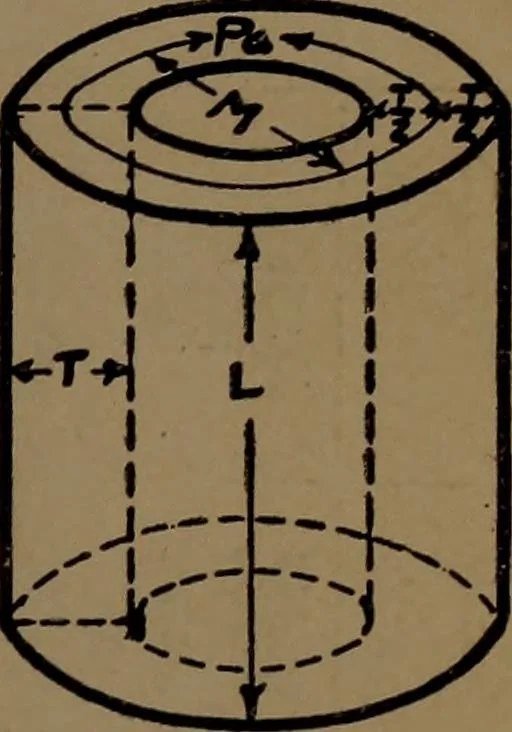

ed in symbols is V=TxLxPa (14) The number of turns of wire on the winding N will be equal tothe cross-sectional area times the number ofturns per square inch Na, or N=TxLxNa (15) The value of Na varies for different sizesof wire and can be obtained from Tables I and II. The total length of wire in… … Fig. 9. Cylindrical Coil R=NP,Ri (16) where Ri is the resistance per inch of wire. The values of Rifor different sizes of wire are given in Tables I and II. The totalweight of wire in a coil can be found by dividing the total resist-ance of the coil by the ohms per pound of the wire used: Weight of…
