Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 61

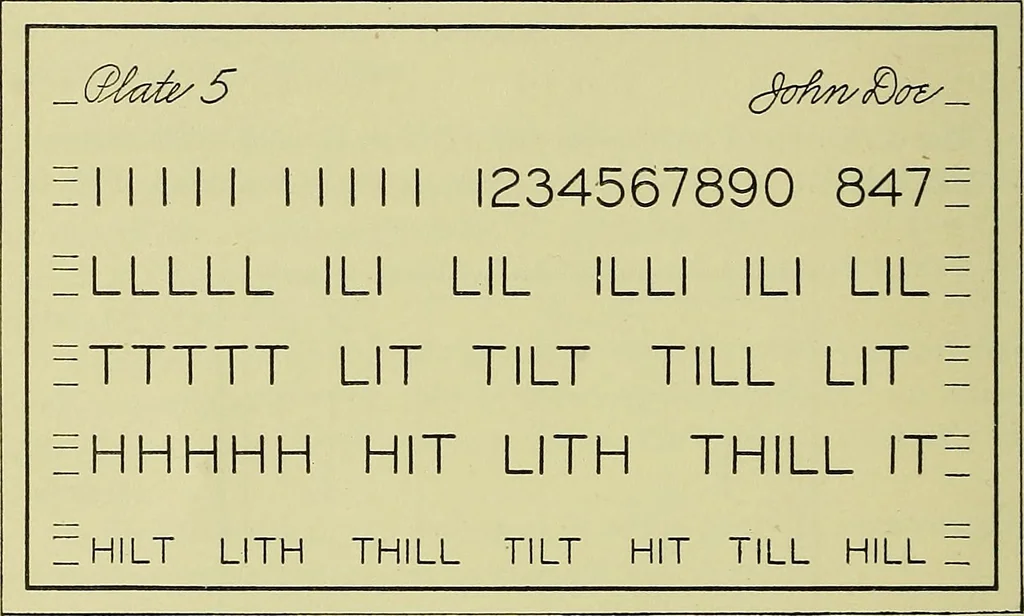

. 52. Lettering Plate Spacing. In this and the following plates practice in mak-ing individual letters will be followed by practice in making 56 MECHANICAL DRAWING words. In order that the lettering may present a good appear-ance, it is as important that the letters be well spaced as thatthey be… … Fig. 53. Lettering Plate 5. I, L, T, H For this style of letters adjacent vertical strokes should bea distance apart equal to one-half the width of the H. Example:H and I, Fig. 51. Letters of irregular form should be placedat such a distance that the space appears equal to that betweenthe H and I.…
Mechanical drawing
