Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 63

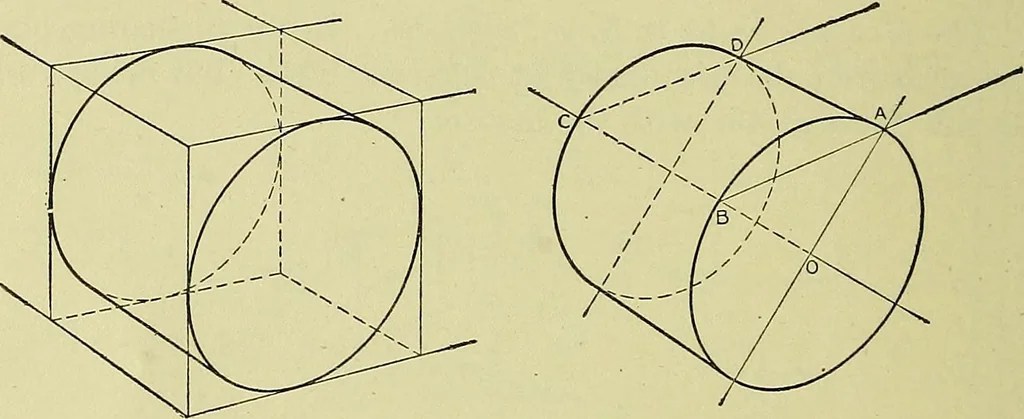

evel. 58 MECHANICAL DKAWING 2. Draw a semi-circle of the same diameter as the circlerepresented by the ellipse, with its center at the center of theellipse. 3. Mark off on the semi-circle the angles which the faces ofthe cube are to make with the horizon. These angles should be90° apart. 4.… … Fig. 55. Cylinder Inscribed in aMeasure Cube Fig. 56. Measure Cyi.indkr. 5. Make the front vertical edge one inch long as in 45°perspective. 6. Complete the cube by drawing the remaining edges con-verging so as to give the faces of the cube the appearance ofsquares. It will be noted that the…
Mechanical drawing
