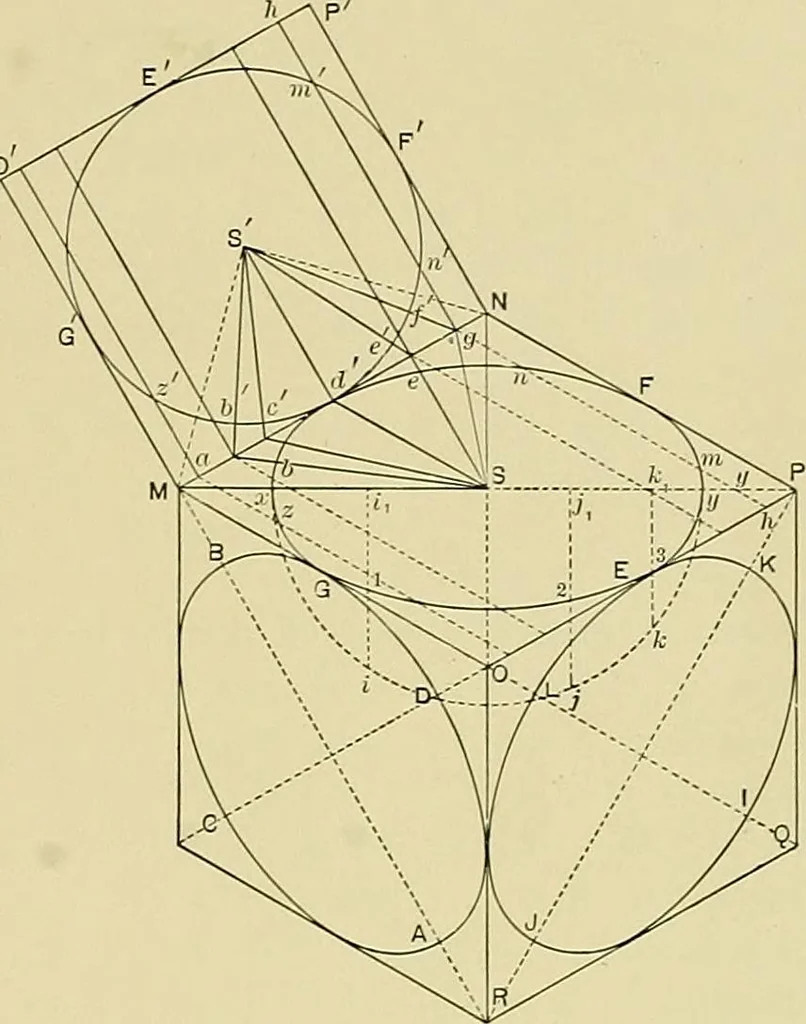

the shadow ofany line parallel to D z, hence for yv,which, however, soon runs into theshadow of B C. As b is the intersec-tion of the ray B b with its projectionb-^b, it is the shadow of B, and bibthat of b^B. Then b v is parallel to B C, the line casting the shadi)W being j^rallel to the plane…
