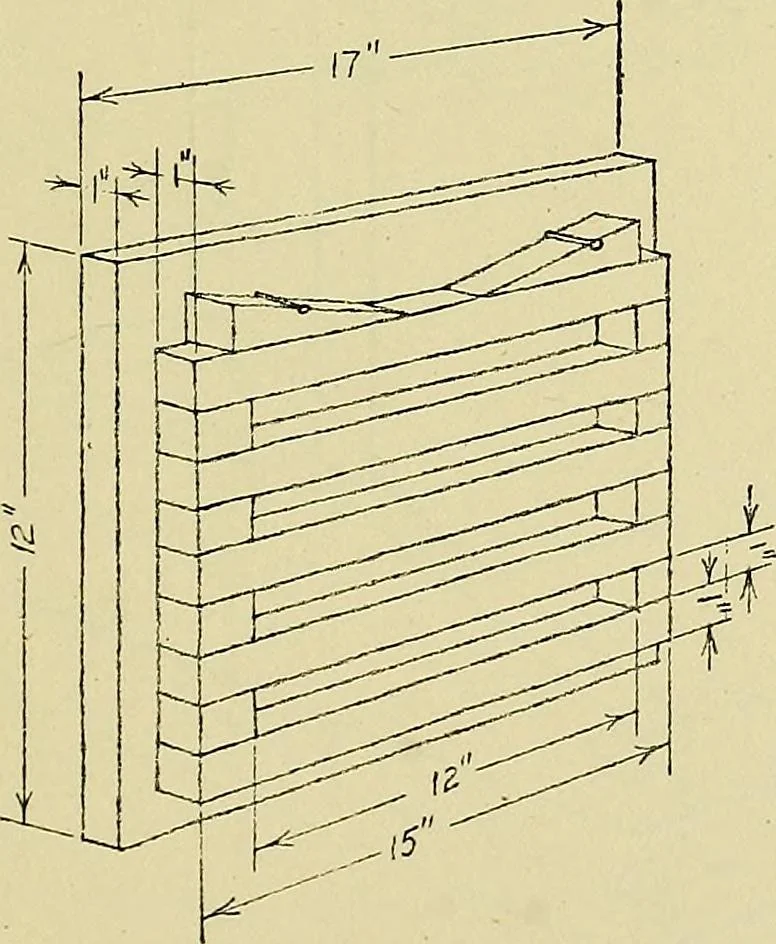

Fig. 63. Book Eack (Dimensioned Perspective) 15. (a) What is a measure cube? (b) Why is it called ameasure cube ? … Fig. 64. Form for Testing Concrete Prisms 16. Of what use is the table line ? 17. (a) How do you proceed to locate the drawing centrallyon the sheet? 64 MECHANICAL DRAWING 18. How are the perspectives of the inclined lines located?
