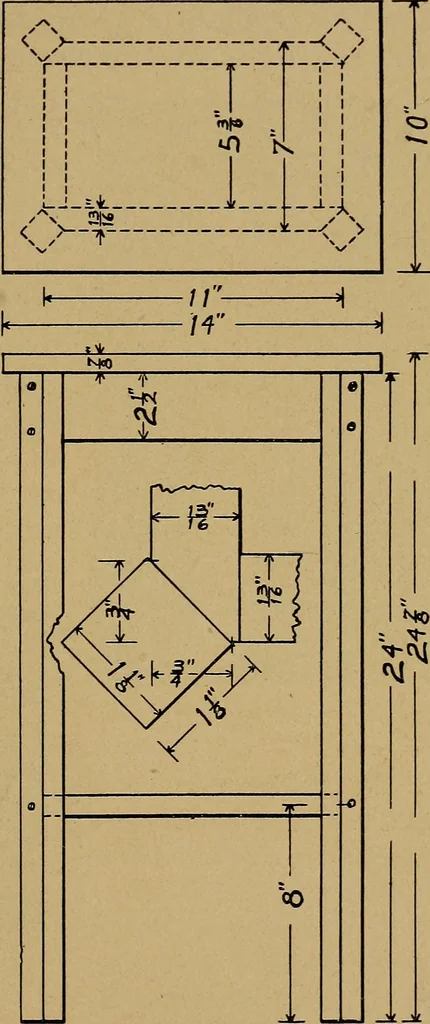

blocks intothe rails. Be sure thatthe rails rest firmly onthe bench, or the jar ofnailing may break thejoints. Another method ofjoining the rails is toclamp the four rails to-gether and bore twoholes at each corner asshown in Fig. 200.Then fit dowel pins tothe holes, and after ap-plying glue to… … Fig. 196—Tabcret 144 WOODWORK FOR THE GRADES should be cut. As these angles determine the position of thelegs, they should be very carefully lined and worked. To plane them, hold them in the viseas shown in Fig. 201. While the glue is drying,make the shelf ready for cuttingits corners. Intead of…
