Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 86

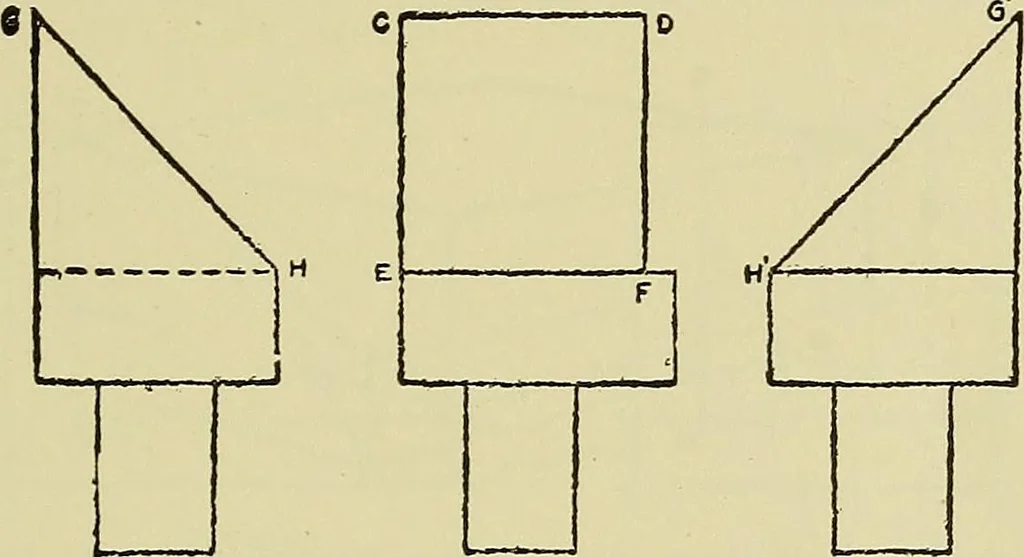

side views containthe same information, if one is given the other may be drawn.As previously explained, an observer sees all vertical dimensionsand the horizontal dimension from left to right in the frontview. All vertical dimensions and the horizontal dimensionsfrom front to back are seen in the… … fRONT Tig. 82. Beveler RI6HT sioe ing and because an observer, when viewing an object, would,after obtaining the front view, naturally step to the right fora right side view or to the left for a left side view. To securethe front view after the side view is drawn, or to secure the sideview after…
Mechanical drawing
