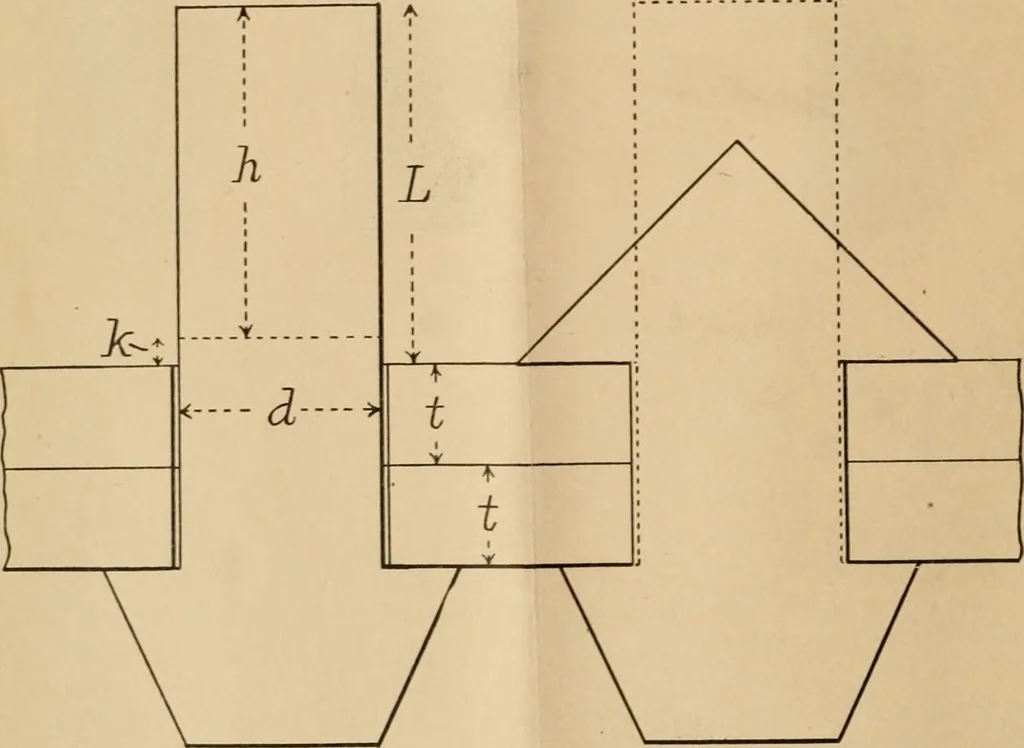

l Relation between Rivet and Hole. an equal amount of stock, and are also reasonable in shape, so as to give aproper bearing against the plates, as well as a satisfactory strength of body.In the common V-shaped riveted-end, the angle at the apex should beabout 90°. In driving a rivet, a certain… … Fig. 6. — Illustrating the Projection of the Rivet through the Plates. BEFORE Driving. I903-] THE LOCOMOTIVE, 19 purpose (indicated by k in Fig. 6) will vary somewhat with the diameter of therivet, and with the thickness of the plates through which the rivet is driven;but it is small in any case,…
