Mechanical drawing for secondary schools (1916)

Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 90

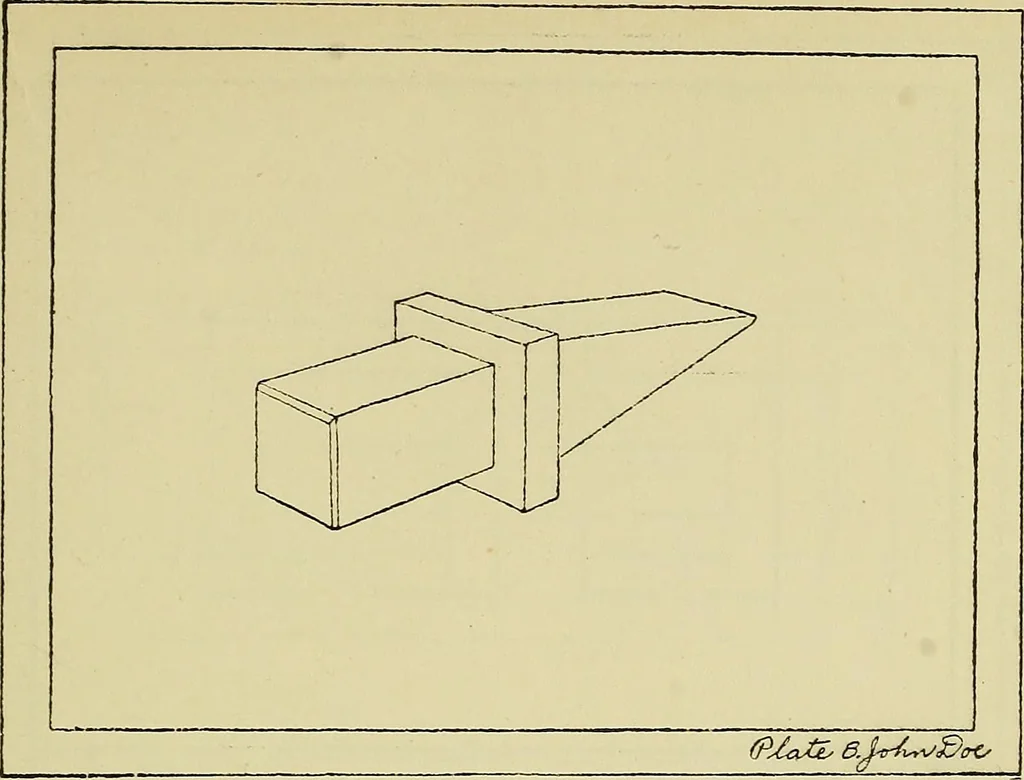

An illustration from Mechanical drawing for secondary schools, 1916, leaf 90 — rdie. Given Views DATA FOR DRAWING PLATE 8 Given: Orthographic sketches, Figs. 88 and 89, 90 and 91. Required: To draw a 45° perspective sketch of the objectshown in Fig. 88, 89, 90, or 91, or any similar object as assignedby the instructor. The upper front corner of the enclosing solid is 2^… … Fig. 86. Type Problem. Hardie. Perspective Sketch
