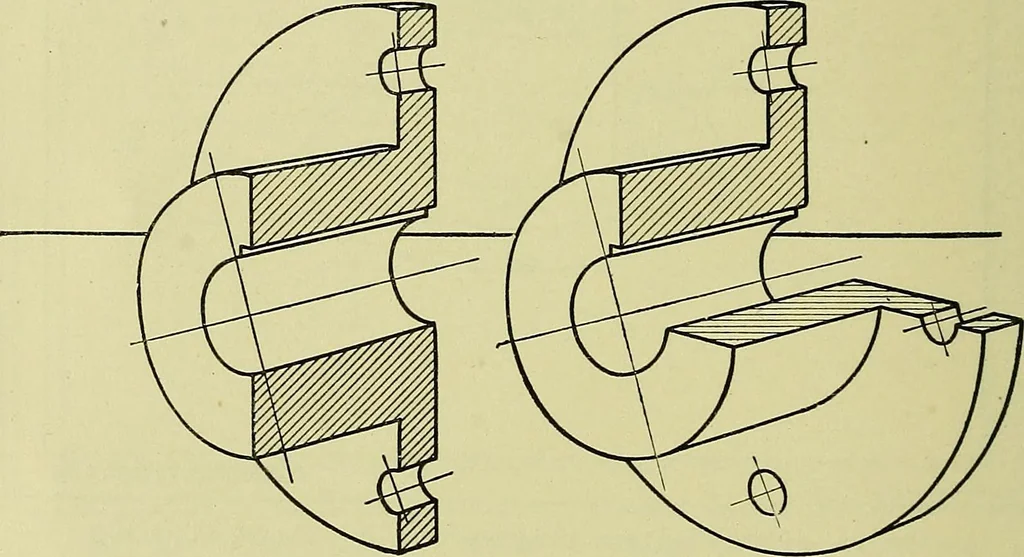

urface 1, 16, 15, 14, shown inthe end view? (b) Where is the surface 2, 3, 12, 13 shown inthe end view? 4. (a) Where is the circular edge 6, 9 shown in the end view ?(b) Where is the circular edge 4, 11 shown in the end view? 5. What surface would be crosshatched if a quarter sectionwere made… … Pig 99. Half Section. Quarter Section. Illustrated in Perspective DATA FOR DRAWING PLATE 10 Given: Orthographic sketches. Figs, 103 and 104. Eequired: To draw a perspective sketch of the objectshown in Fig. 103, 104, or any similar object as assigned by theinstructor, with its axis vertical. The…
