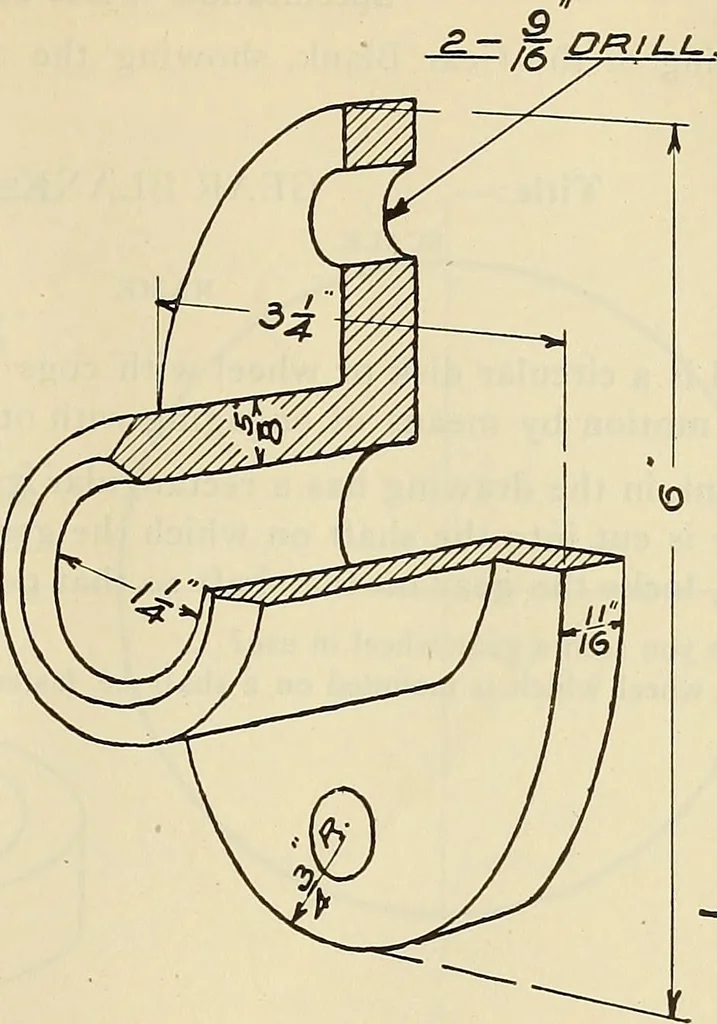

-^J- I06 MECHANICAL DRAWING PROBLEMS Specification—Plate 29A.Make a drawing of the Gear Brank, showing the side view in full section. Scale 12 1. Title:— GEAR BLAXK SCALE DATE NAME A gear \vheel is a circular disk or wheel with cogs or gear teeth cut into the rim. It isused to transmit motion by…
