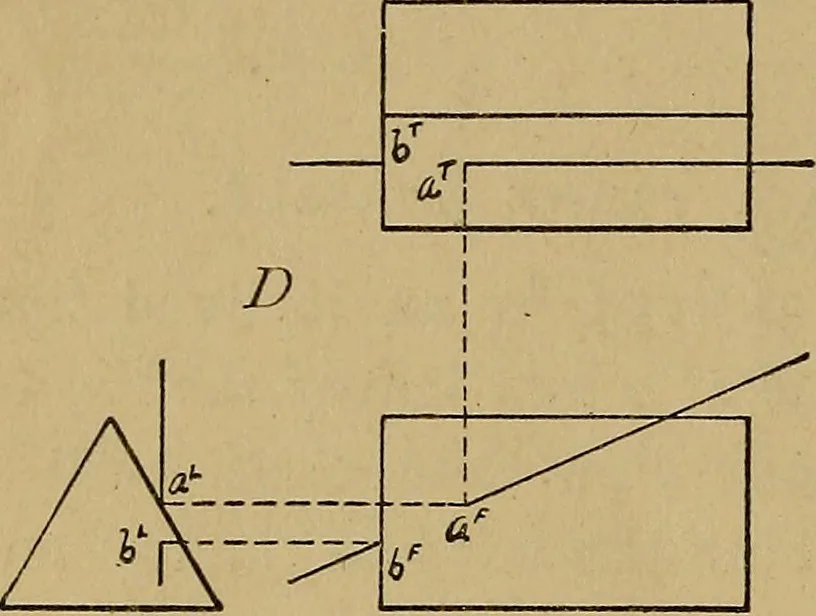

C represents a cube intersected by a line whicheliters the left visible vertical surface, and leavesfT^^ the top of the cube. The front view representsthe top of the cube by a horizontal line, and in thisview the intersection b^ of the line with the top isseen. The intersection a of the line with… … 174. Drawing D shows a line which pierces the left end and the front inclined surface of a triangularprism. The intersection of the line jjand the inclined surface cannot bedetermined in either the front or thetop view, for in neither view does the -surface appear a line. In the sideview the…
