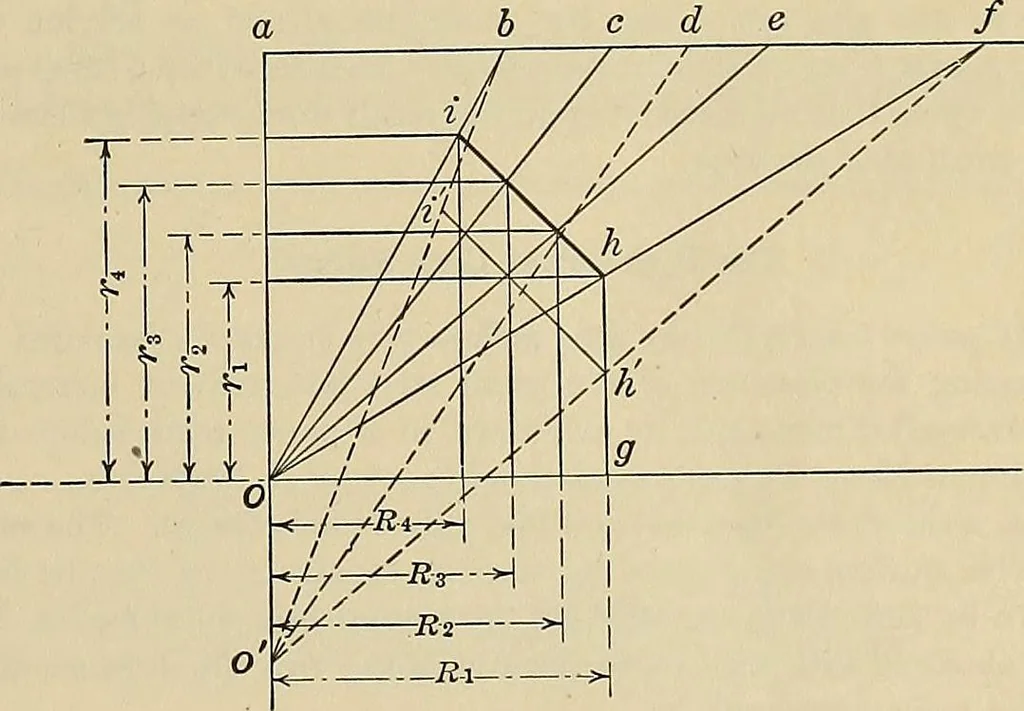

Fig. 3.—Finding the Diameters for Cases I and II. Equal coneshaving an odd number of steps. … Fig. 4.—Finding the diameters for Cases I and II. Equal coneshaving an even number of steps. Figs. 2 to 5.—Graphical method of laying out cone pulleys. Proceed as in Fig. 4: Lay down the speeds as before and locate 0at any convenient point on aO. Draw Ob and Of; lay down Rx,find h and draw hi at 45…
