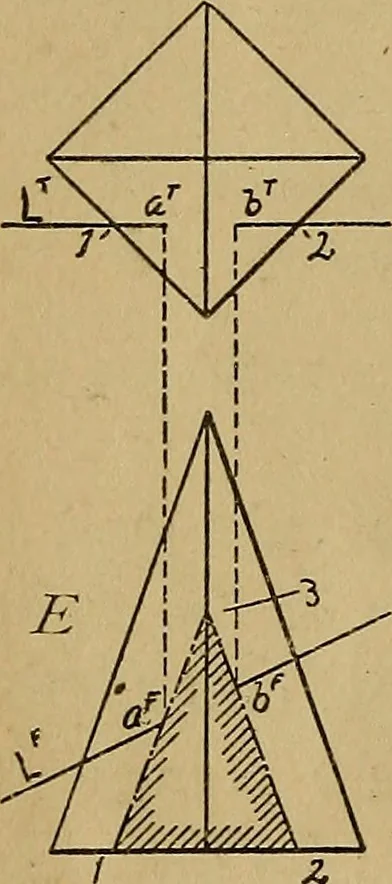

line as draw-ing E, but instead of choosing a vertical plane throughL as the auxiliary plane, a plane is passed throughZ, perpendicular to the front plane. The front viewgives the points z^, 2^, j-^, and 4^ where the lateraledges intersect this cutting plane, whose figure ofintersection is readily…
