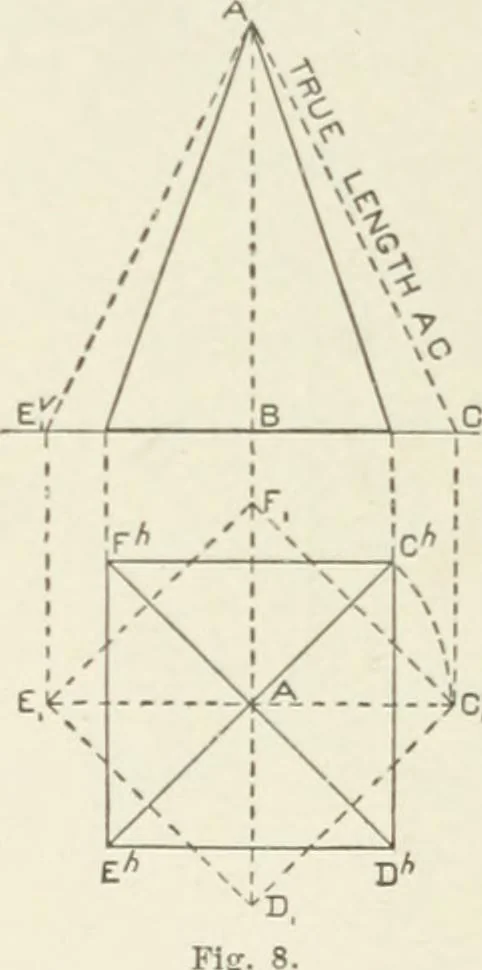

le pyramid around, as the one line A C will be sufficient.The principle of finding the true length of lines is this, anucan be applied to any case : Swing one projection of the line par-allel to the ground line, using one end as center. On the otherprojection the moving end remains at the same… … 46 MECHANICAL DRAWING. Third plane of projection or profile plane. A plane pei-pen- dicular to both eo-onlinate planes, and hence to the ground line, ia
