Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 108

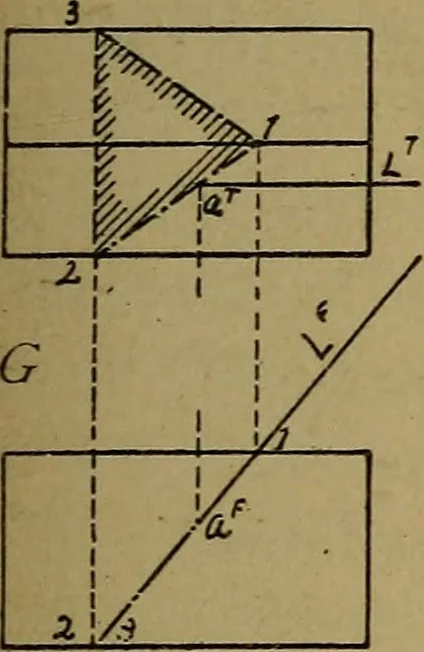

. Tlie intersection may be found without drawingthe end view, by means of a cutting plane used asexplained in E and F. The cutting plane used in the illustration isperpendicular to the.front plane; and in the frontview points i, 2, j of the section, which are in theedges of the prism, are seen.… … Intersections of a Line and a Curved Surface. 178. Drawing ZT represents a sphere intersected by a horizontalline Z, in front of the centre of the sphere. If the line were in a vertical plane passingthrough the centre of the sphere and parallel tothe front plane, the front view would give the…
Mechanical drawing
