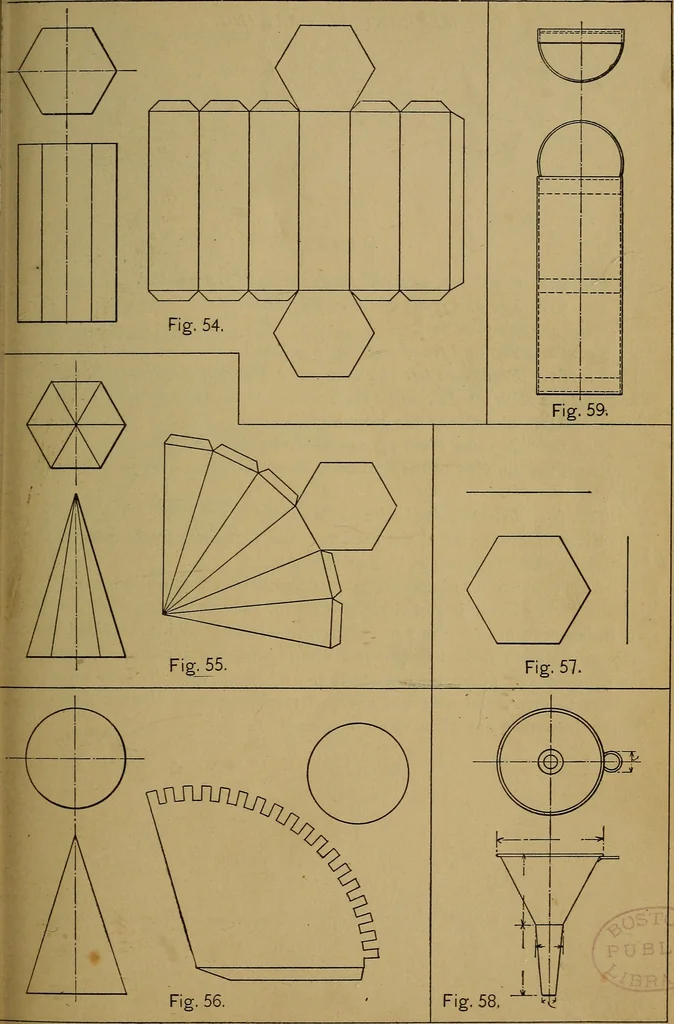

ro7it views and development of an upright hexag-onal pyrani id. Fig. 56. Front arid top views and development of an upright cone. Fig. SI Front, top, and right side views of an hexagonal tablet. Fig. 58. Front and top views of a tin tunnel, placed so that its circu-lar edges appear circles iji. the… … Il8 MECHANICAL DRAWING. PLATE IV. Fig. 6o. Front, top, and right side views of a knife-box. Fig. 6i. Top and fro7it views of an oil-can. Draw the top view first. Fig. 62. Top and front views of a call-bell.—^ Fig. 63. Front and left side views of a horizontal hollow cylinder; ahorizontal section on…
