Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 90

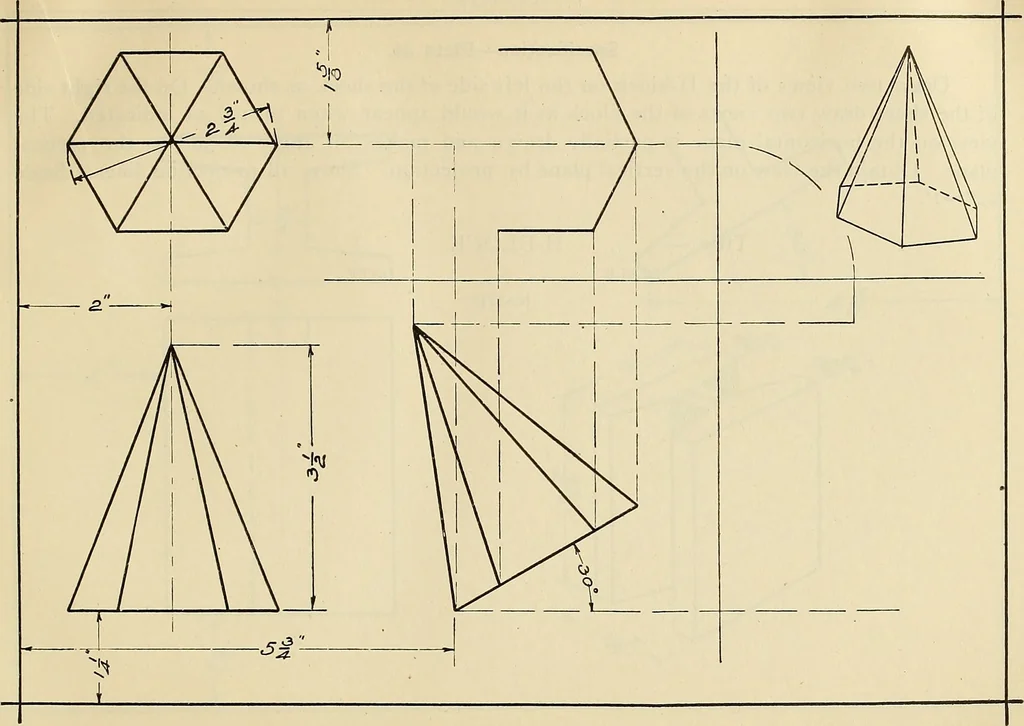

86 MECHANICAL DRAWING PROBLEMS Specification—Plate 23. Draw two views of the Hexagonal Pyramid on the left side of the sheet, as shown.On the right side of the sheet draw three views of the pyramid when tilted as indicated. Theview on the vertical plane is complete. Obtain the view on the… … 88 MECHANICAL DRAWING PROBLEMS Specification—Plate 24. Draw two views of the H-block on the left side of the sheet, as shown. On the right sideof the sheet draw two views of the block as it would appear when turned as indicated. Theview on the horizontal plane is partially drawn and makes an angle…
Mechanical drawing
