Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 130

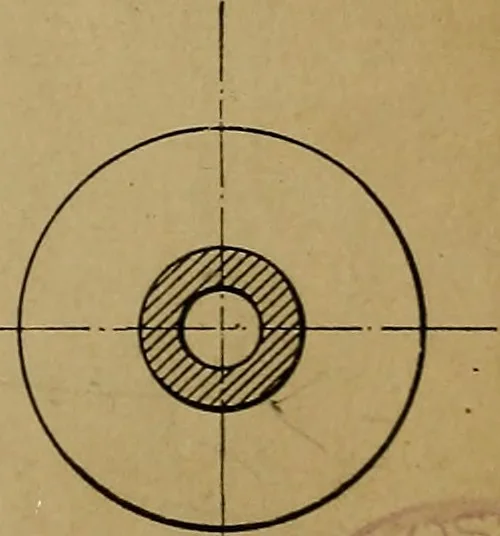

^^^^^mmL ig^^^^^^^^^^^^^^%^ SECTION AT A B Fig. 69. … SECTION AT C D 122 MECHANICAL DRAWING. PLATE VI. Fig. 72. Top^ front, and right side views of a horizontal oblongtablet^ with a vertical triangular one attached to its right edge. Draw the top or side view first. Fig. 73. The same views of the same combination as in Fig. 72, butwith a vertical…
Mechanical drawing
