Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 134

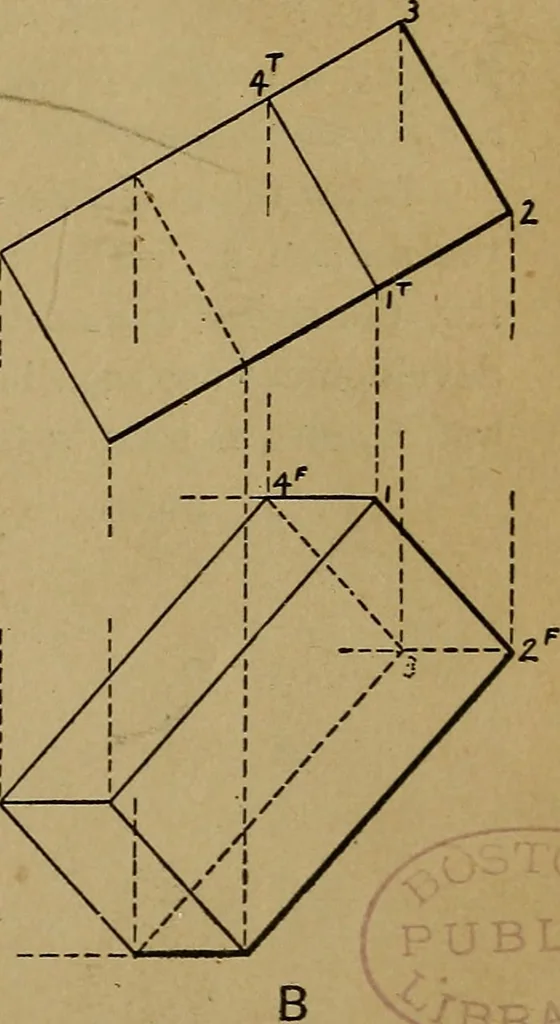

s-f Fig.82. … 126 MECHANICAL DRAWING. PLATE VIII. Fig. 83. Fronts top., and right side views of the lower portion of anupright square prism., cut by a plane at an angle 0/4^ to its base j alsothe real shape of the section and the development of the surface of the object. Draw the top view first, next the front…
