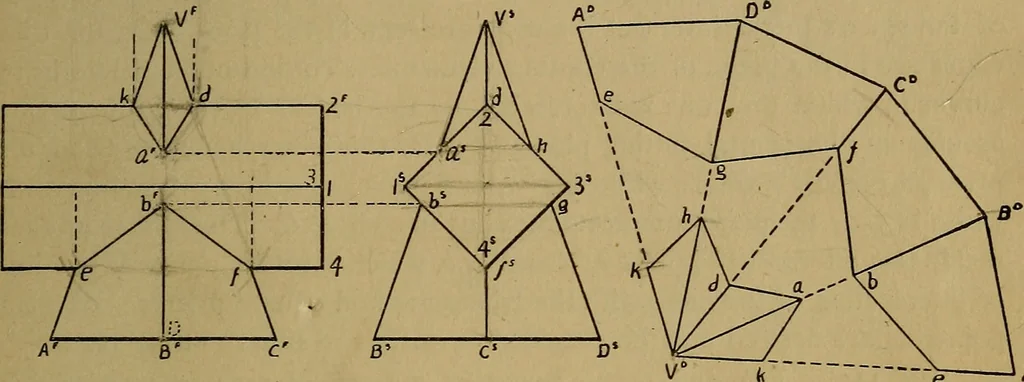

m V is seen in the frontview and 4^^ is readily placed. A line through 4D parallel to A^BD andintersecting VI^-2D must give o^^j in this way all the points may be found. To obtain the lines of intersection in the development of the cylinder,measure, in the end view and around the arc, the distances… … r- »A
