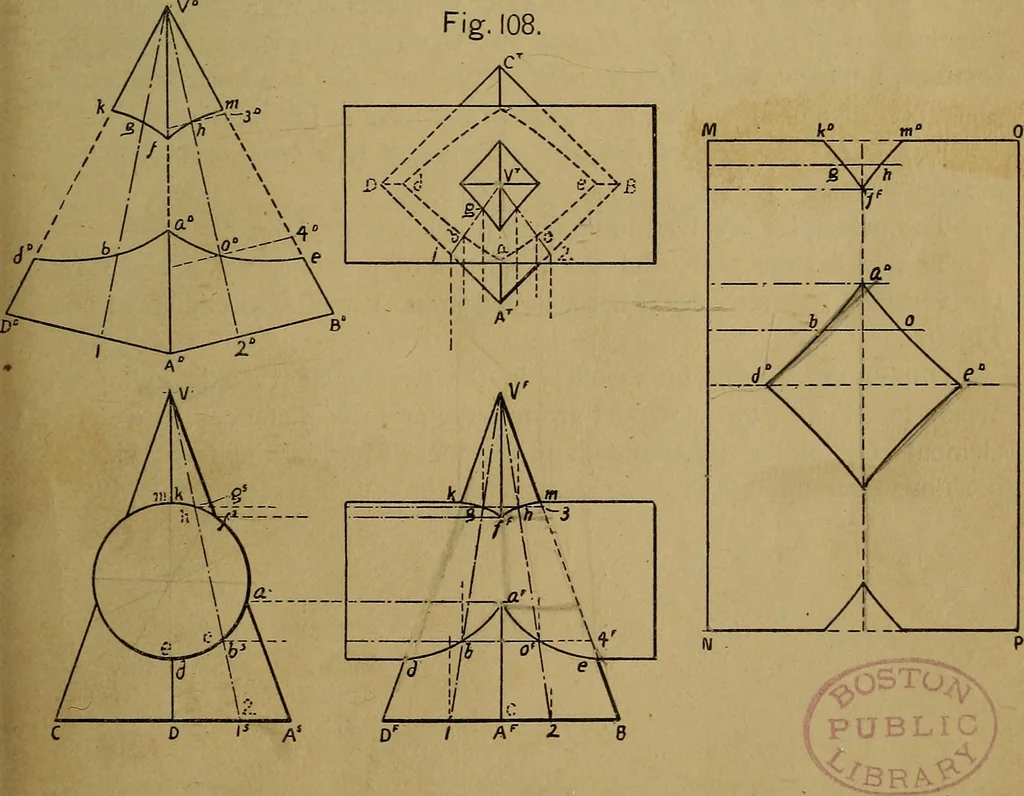

r- »A … 152 M&CHANICAL DRAWING. PLATE XVII. Fig. 109. Top and frojit views of a vertical cone intersected at theleft by a horizontal triangular prism, and at the right by a squaie pris7?i. The points in which edge D of the triangular prism and edges 2 and 4of the square prism intersect the cone are…
