Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 23

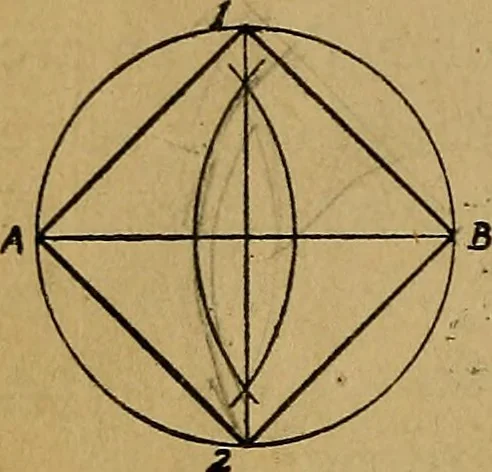

To construct a rectangle of given sides, AB andCD, At A, by Problem 4, erect a perpendicularAI equal to CD. With i as centre and radiusAB, describe an arc, and intersect this arc in 2,by one described from B with CD as radius.Join 1-2 and 2B. … Problem 9. — To inscribe a square within agiven circle. Drzw AB, a diameter of the circle, which will be a diagonal of the square. By Proble- 1 I bisect AB, and continue the bisector to intcr- ^sect the circle in i and 2. Join^ j, i ,y, B 2, and 2 A. Note. — A square may be constructed upon a given…
