The American house-carpenter; a treatise on the art of building, and the strength of materials (1867)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York, J. Wiley · leaf 232

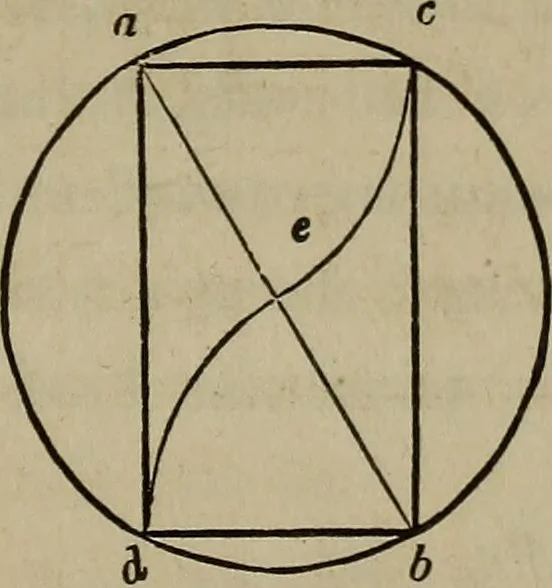

oportion to unity, as & is to d—from which pro-portion h — dr. ^ is a constant the value of which is foundin Table 11. 330.—To ascertain the scantling of the stiffest team that canle cut from a cylinder. Let d a ch^ {Fig. 223,) be the section,and e the centre, of a given cylinder. Draw the… … Fig. 223. 331.—Resistance to Rupture.—^The resistance to deflect/lo^ihaving been treated of in the preceding articles, it now re-mains to speak of the other branch of resistance to crossstrains, namely, the resistance to rupture. When a beam islaid horizontally and supported at each end, its…
Carpentry · Architecture
