Mechanical drawing : a manual for teachers and students (1902)
Cross, Anson Kent · Boston : Ginn & Co. · leaf 35

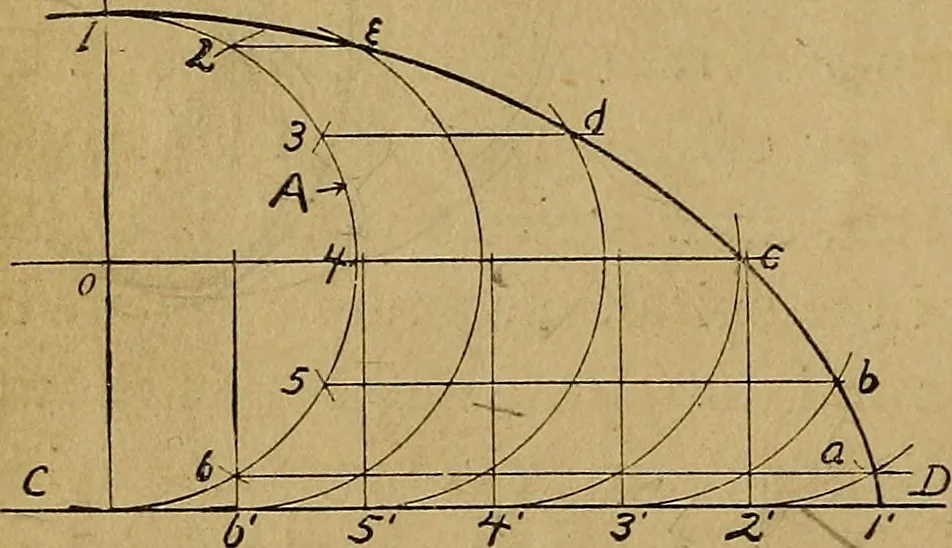

ycloid. In any positionof the circle point i will be found by setting off as many equalspaces on the circle from points 2, 3 , \\ etc., as the circle has rolledover, starting from i\ Thus, one space from 2 X.o a \ two spacesfrom j to b, and so on, for the complete curve. Points a, d, c, etc.j|may… … I GEO ME TRIG A L PR OBLEMS. 27 curve, of which one-half only is shown, may be obtained. Thelength of the arc between the points in the circle of this and Prob.48 may be computed, or a result practically correct obtained bydividing the circle into many parts. Problem 50.-— To construct the…
