The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 468

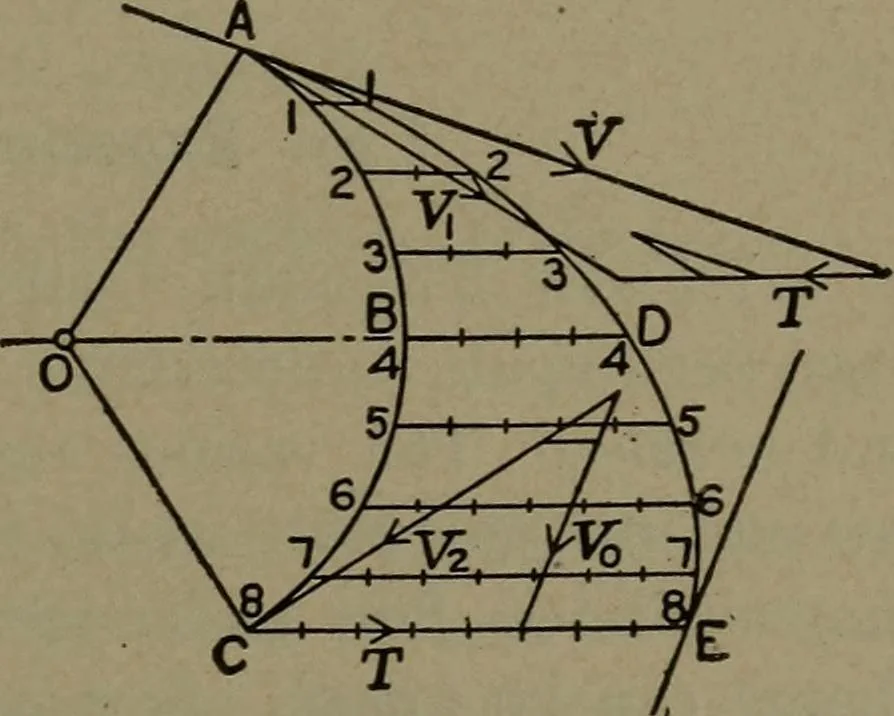

V\ or T2: the length of thisradius represents the uniform relative velocity assumed to exist alongthe channel, while successive angular positions show the direction ofthat velocity at the successive numbered points along the curve inFig. 323. After putting in Vi and V2 and dividing the arc C8, we… … 452 ACTION OF THE STEAM IN THE TURBINE. [Chap. IX. the steam velocities are laid out as parallel ordinates. The kineticenergy of an element of the current varies as the square of this ordinate,and thus can be seen how the initial energy is gradually diminished as
Steam-engines · Steam-turbines
