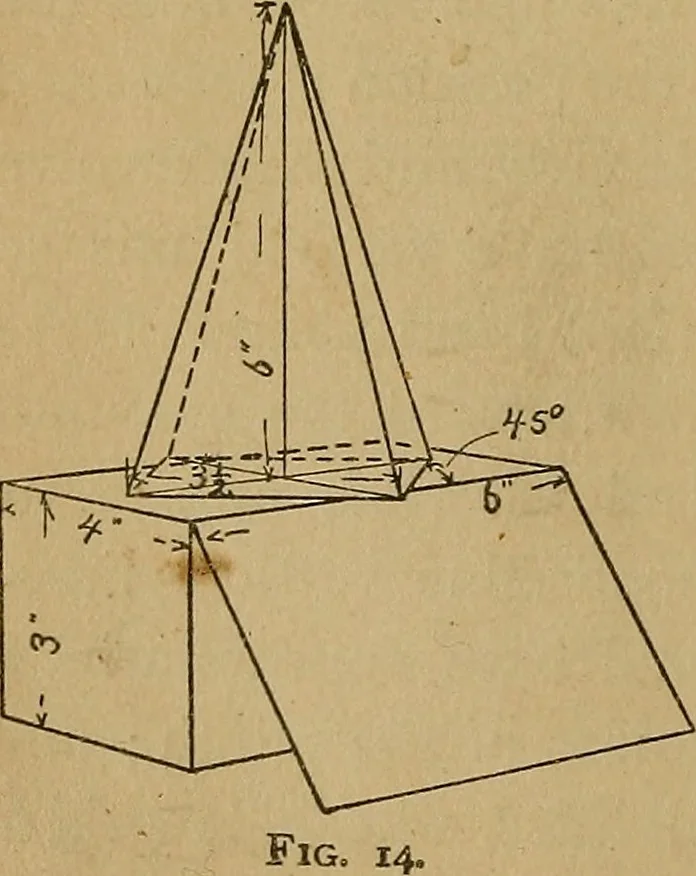

. See T, Fig. 13- 40. Views of a Box and Pyramid. — Fig. 14 is a perspectiveof a tin box with its cover opened backand resting on the surface that supportsthe box. A square pyramid is centrallyplaced on the top of the box, the edgesof its base being at 45° to those of thetop of the box. The view… … WORKING DRA WINGS. 41
