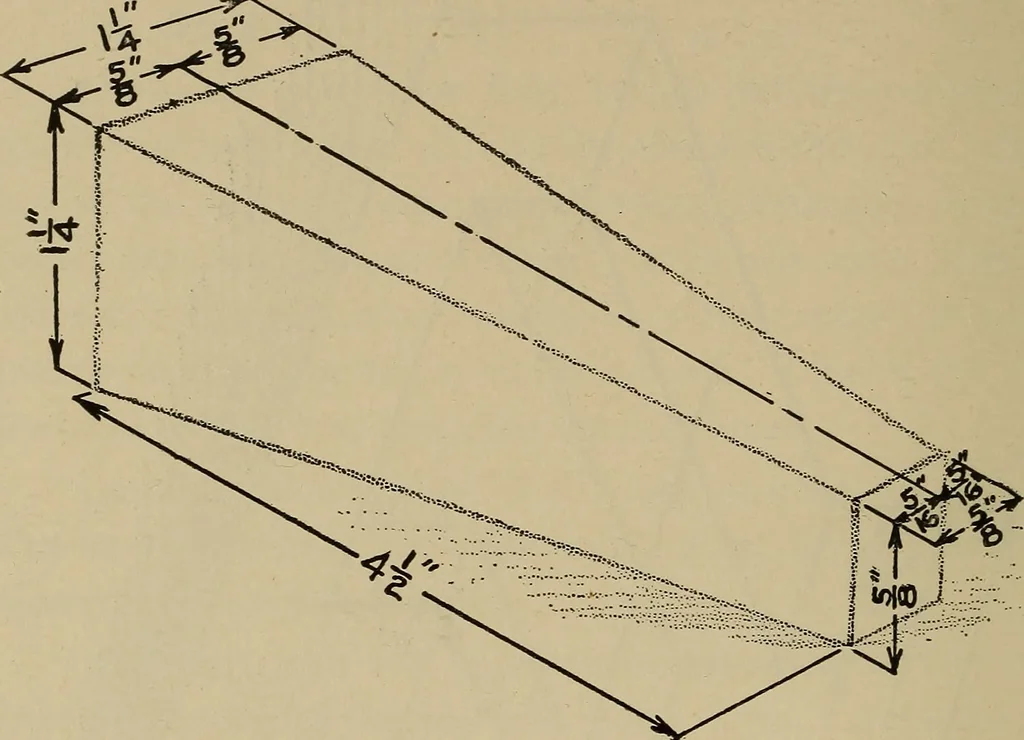

12 Notes on Practical Mechanical DrawingExercise No. 3 F>^ … 9. Detailed directions for penciling and inking ExerciseNo. 4. Draw the plan view first, laying out the center line,scaling the length over all, and the width of the view. Next,lay off the shorter horizontal distances, preferably upon thecenter line, marking continuously from the scale, then…
