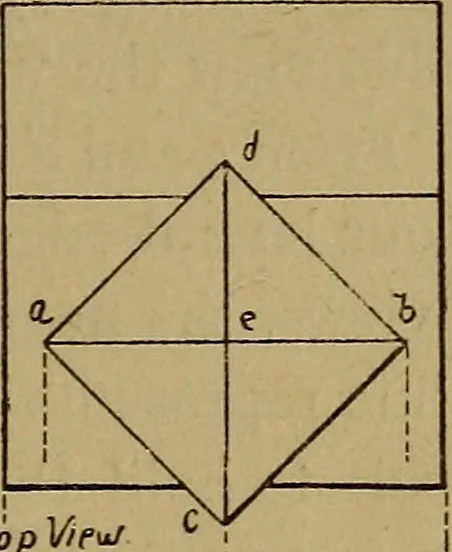

WORKING DRA WINGS. 41 … Top Vie^ r / r e Froni / \ \ 6,de / \ ii i\L I . \ ■1 Y \ / V In the front view the box is represented by a horizontal rectangle3 high and 6 long. This may be drawn first, and then the top andthe end views of the box.The top view of the box isa horizontal rectangle 4wide and 6 long ; the sideview…
