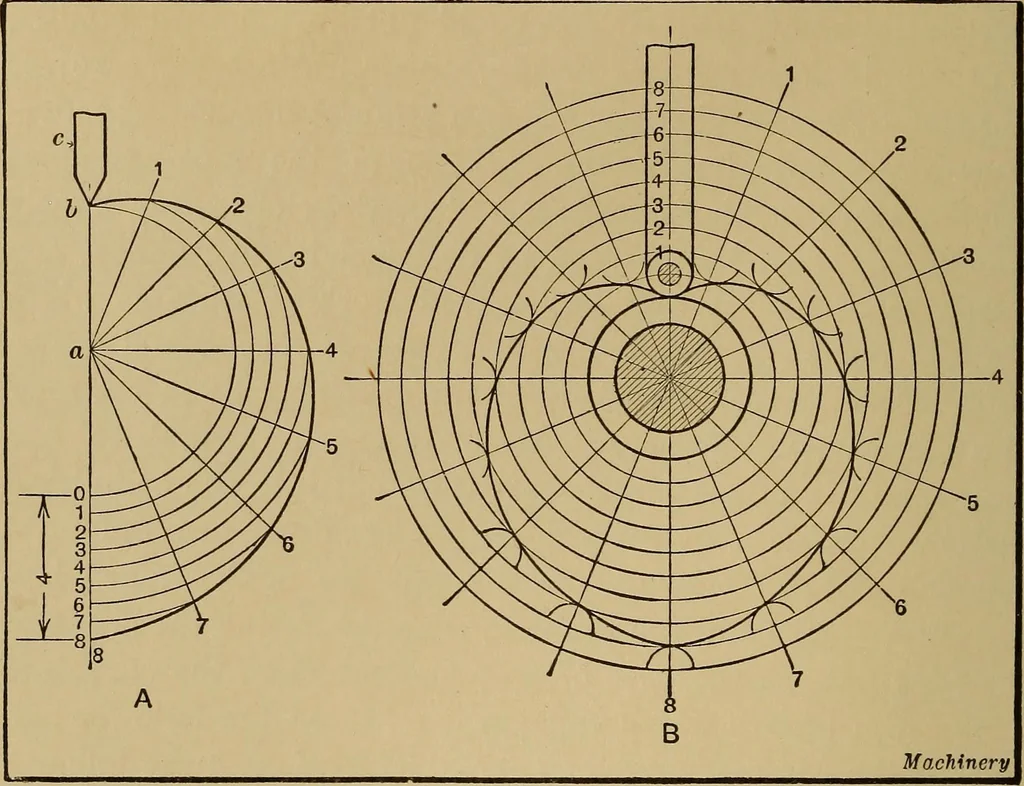

ECHANICAL DRAWING starting point. The diagram A, Fig. i, shows one half of thecam curve and illustrates the method of laying out this curveto secure a uniform motion. The center or axis of the camis represented at a and the follower, at c. The follower inthis case is shown as a pointed rod,… … Fig. 1. Method of laying out a Heart Cam for a Uniform Motion about center a. In this case, the semicircle has a radius abypoint b representing the lower end of the stroke of the follower.Assuming that this stroke is to be 4 inches, this distance islaid off on the center line and is divided into…
