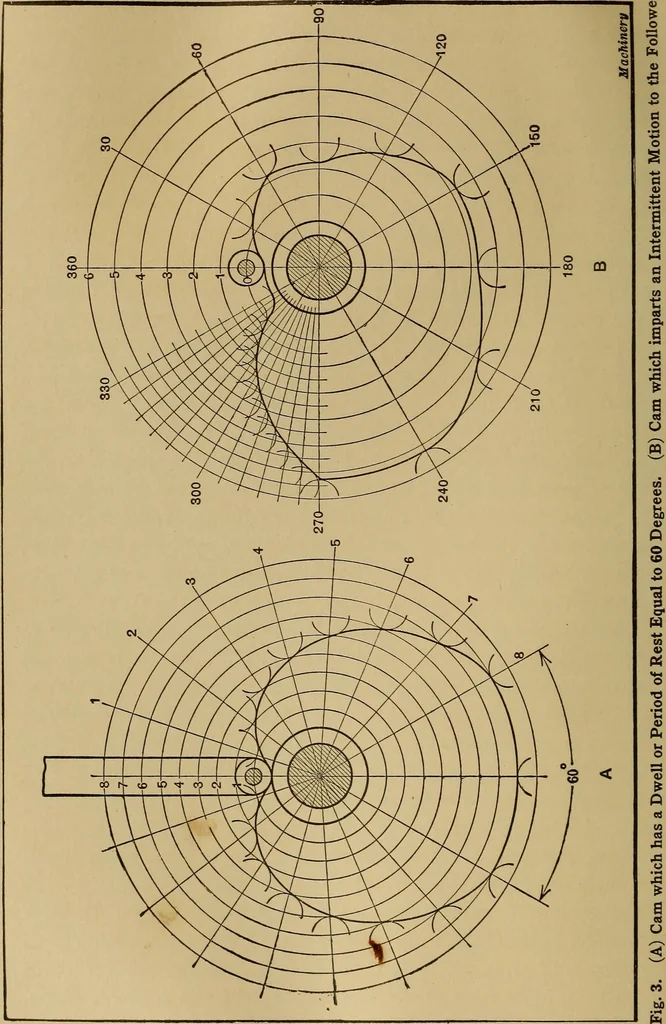

ndicated by the center line y. The arc representing thepath followed by the center of the cam roller would, if ex-tended, intersect the axis of the camshaft. In order to layout this cam curve, concentric circles are drawn throughdivision points laid off on the stroke line of the follower asbefore.… … LAYING OUT CAMS 241 divisions as the follower stroke line. With a radius equal tothe length from center x to the center of the follower roller,arcs 1, 2, 3, etc., are described from the division points onthe outer circle. The points of intersection between thesearcs and the concentric circles of…
