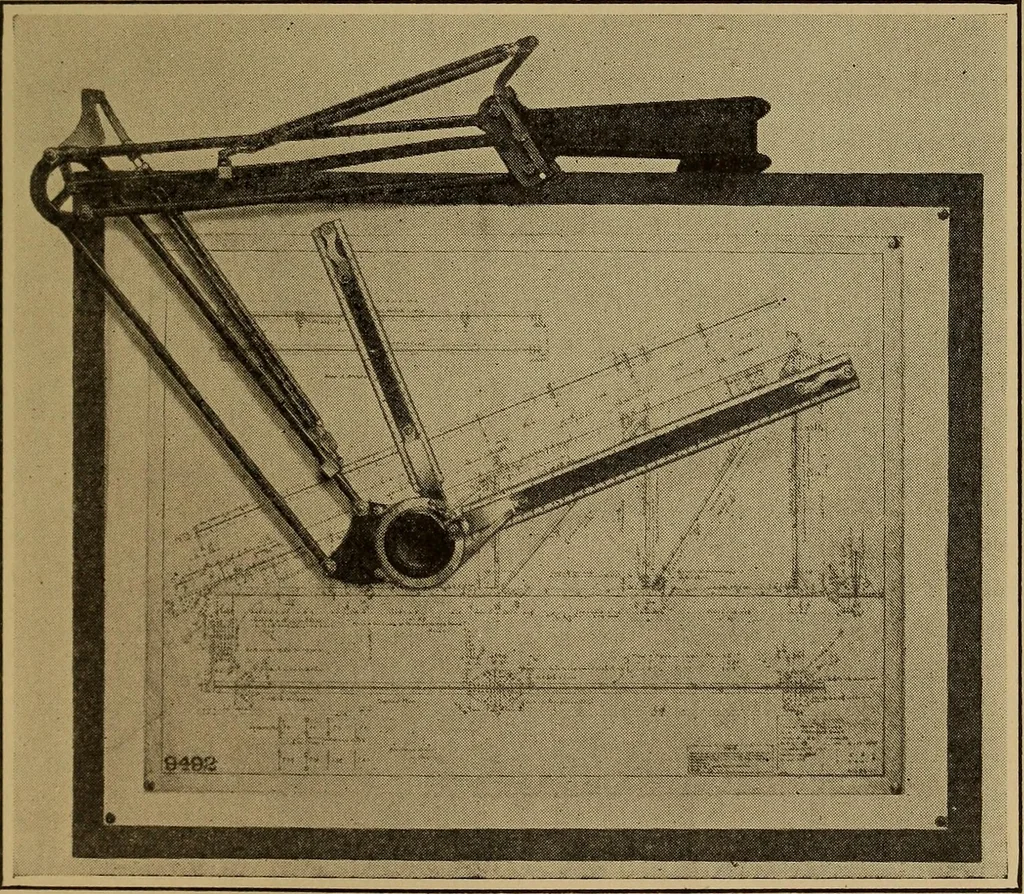

Fig. 24. Universal Drafting Machine … Fig. 25. Drafting Machine counterpoised with Springs for Use on Board placedin Vertical Position 52 MECHANICAL DRAWING ruling edge to just the exact length required. Thus in draw-ing a straight line to any required length, there is no chang-ing from a ruling edge to a scale edge and there is no…
