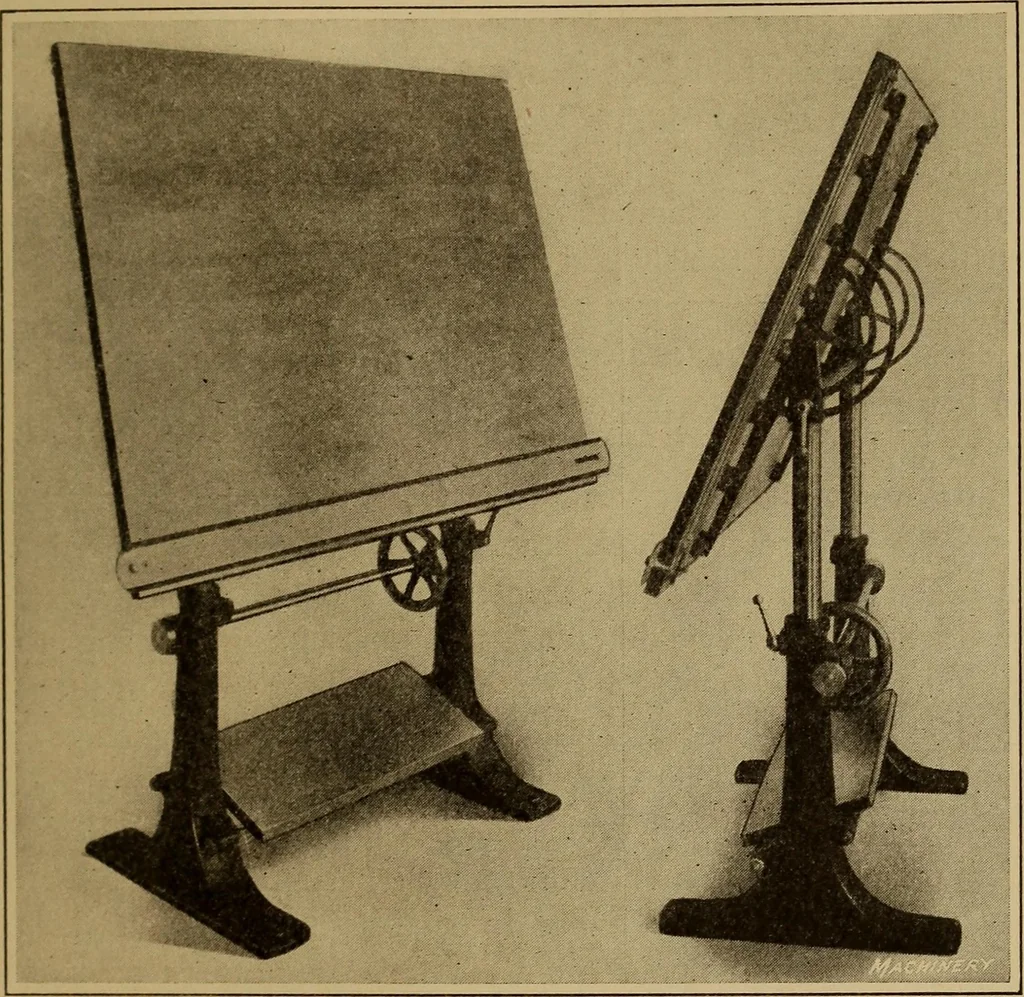

ustedfor height and also for changing the inclination of the table. INSTRUMENTS AND MATERIALS 57 The method of obtaining the adjustment and the generalarrangement varies considerably on different mak^s. A simple design of drafting table is shown in Fig. 29. Thisis a folding type which may be… … Fig. 30. Another Type of Adjustable Drawing Table has both vertical and angular adjustments. The front andside views clearly show the construction. The board is firmlysecured to cast brackets which are pivoted to the vertical sup-porting members. The table is rigidly held in an angularposition by…
