Mechanical drawing for industrial and high schools (1917)
Leeds, Charles Carley, 1870- [from old catalog] · New York, D. Van Nostrand company · leaf 73

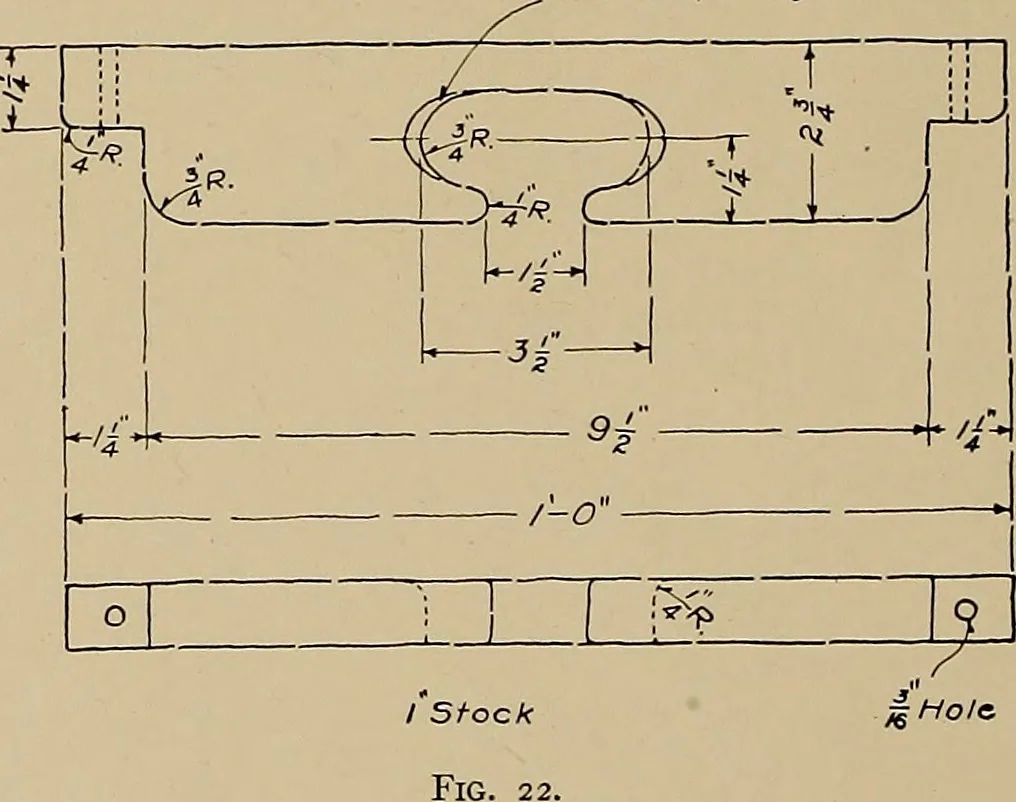

cle arc, he should lay out an isometricsquare of the circle diameter, as a means of locating the position ofthe radius center. BROOM HOLDER.—Fig. 22 shows a two-view mechanicaldrawing of a broom holder. From this illustration the student isexpected to lay out a full-size isometric drawing of the…
Mechanical drawing
