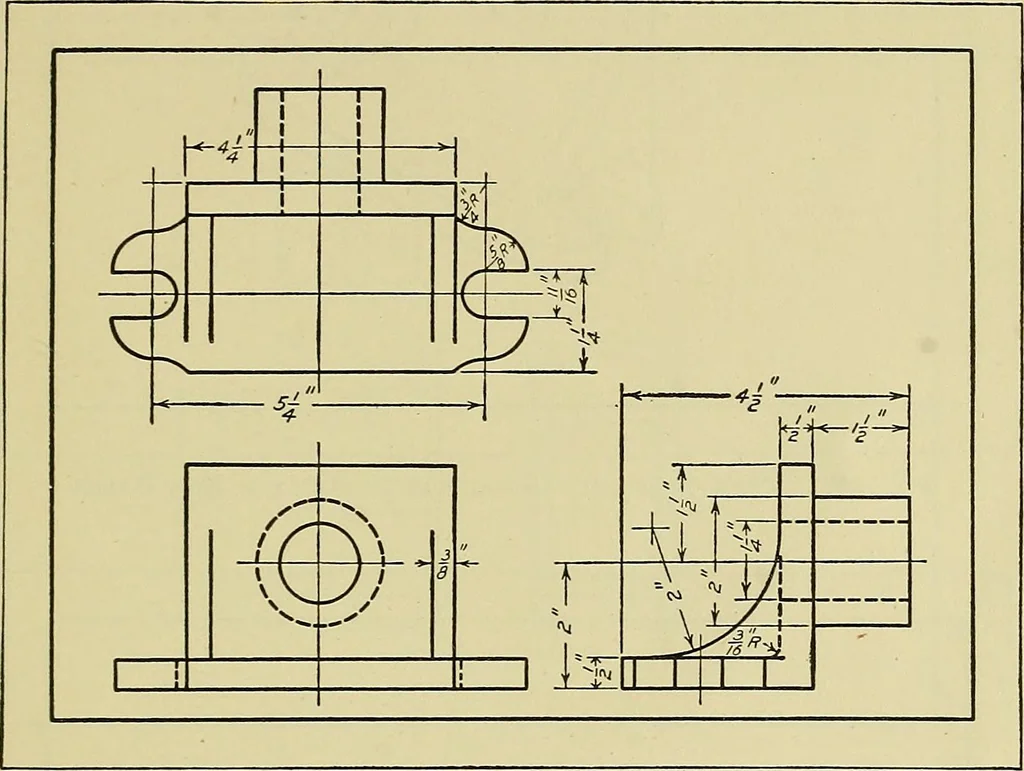

ions see page 314. Instructions: 1. Make an orthographic drawing to scale. 2. Draw lines for the isometric drawing in the directions ofthe three axes: One vertical, and one each to the right and to theleft, making 30° with the horizontal. ISOMETRIC AND CABINET DRAWING 311 3. Decide which of the… … Fig. 351. Type Problem. Planing Jig for Eod Brass.Views Orthographic 5. Transfer actual lengths from the orthographic drawingwith the dividers, taking care to lay them off in the direction ofthe proper axis. 6. Draw the necessary lines through the points located, re-membering that lines of the…
