Mechanical drawing for industrial and high schools (1917)
Leeds, Charles Carley, 1870- [from old catalog] · New York, D. Van Nostrand company · leaf 84

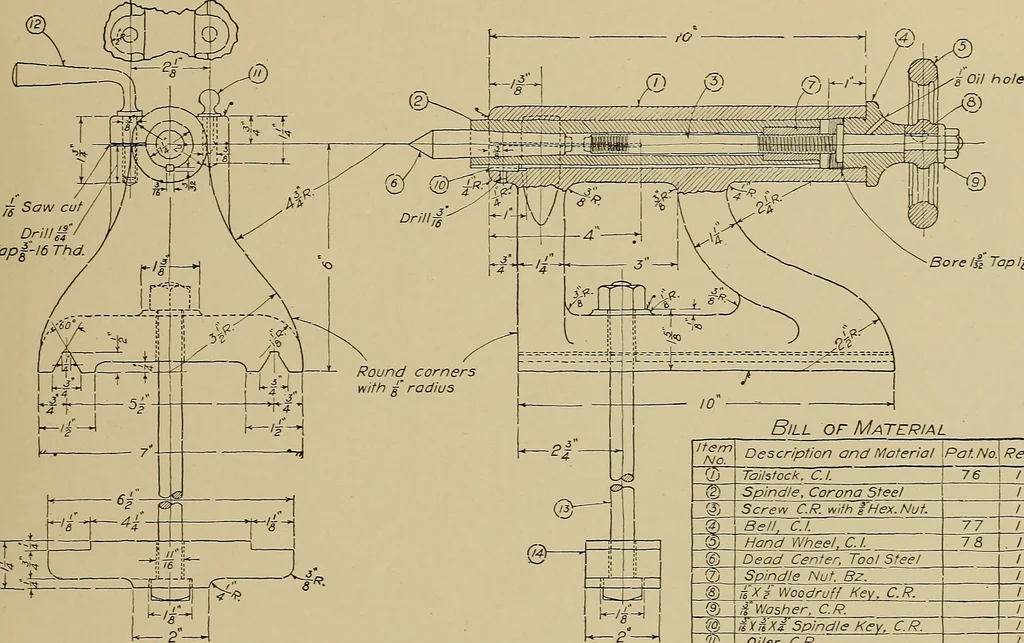

cut on the side of the tailstock barrel is for the purpose of allowing this part to clamp tightly around the spmdle when the bind-ing screw is tightened down. The oil hole shown in the bell should be drilled after it is in placein the barrel, as it should of necessity be on the upper side of the… … Bill or Material Note: For details see Dwgs. CJ0Z7 & C.I02S ItemNo. Description and Material PatNo]^Req. (/J TaJIsfock. C.I. 76 \ 1 [ (t) Spindle, Corona Steel ® Screw C.R. wifh fHex.Nut. ;?) Bell. CI 77 (5) Hand Wheel, C. 1. 78 ® Dead Center, Tool Steel 0 Spindle Nut. Bz. (^, TiXf Woodruff…
Mechanical drawing
